Observations/Finding

Our AS ENGINEERING AND CONSULTING, LLC (ASEC) representative Vidal Dias visited the site at the

request of Jackson Demolition representative Josh Kelly. The undersigned representative was present to

observe, verify and document the ongoing project activities.

During the visit, the following observations were made:

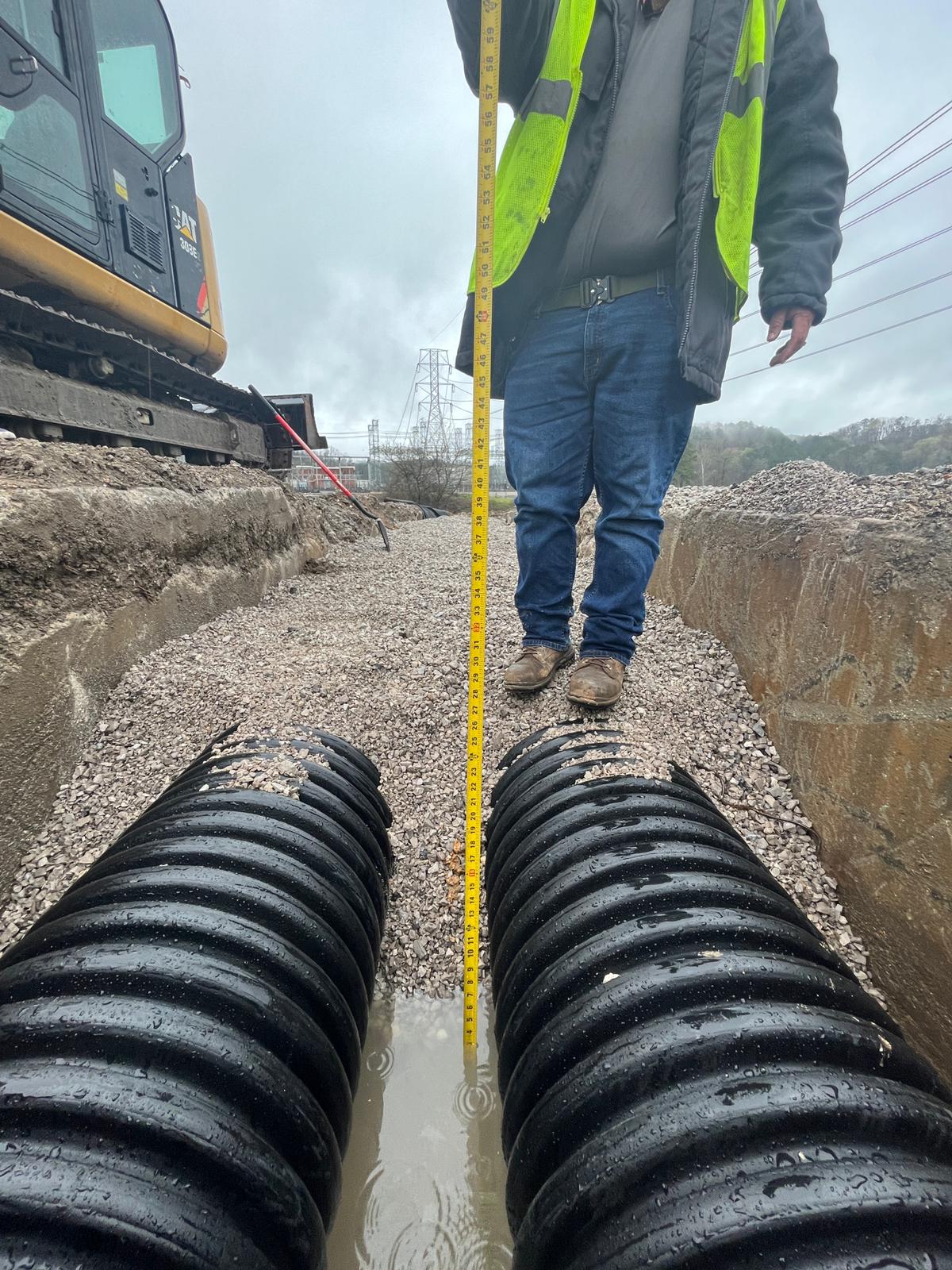

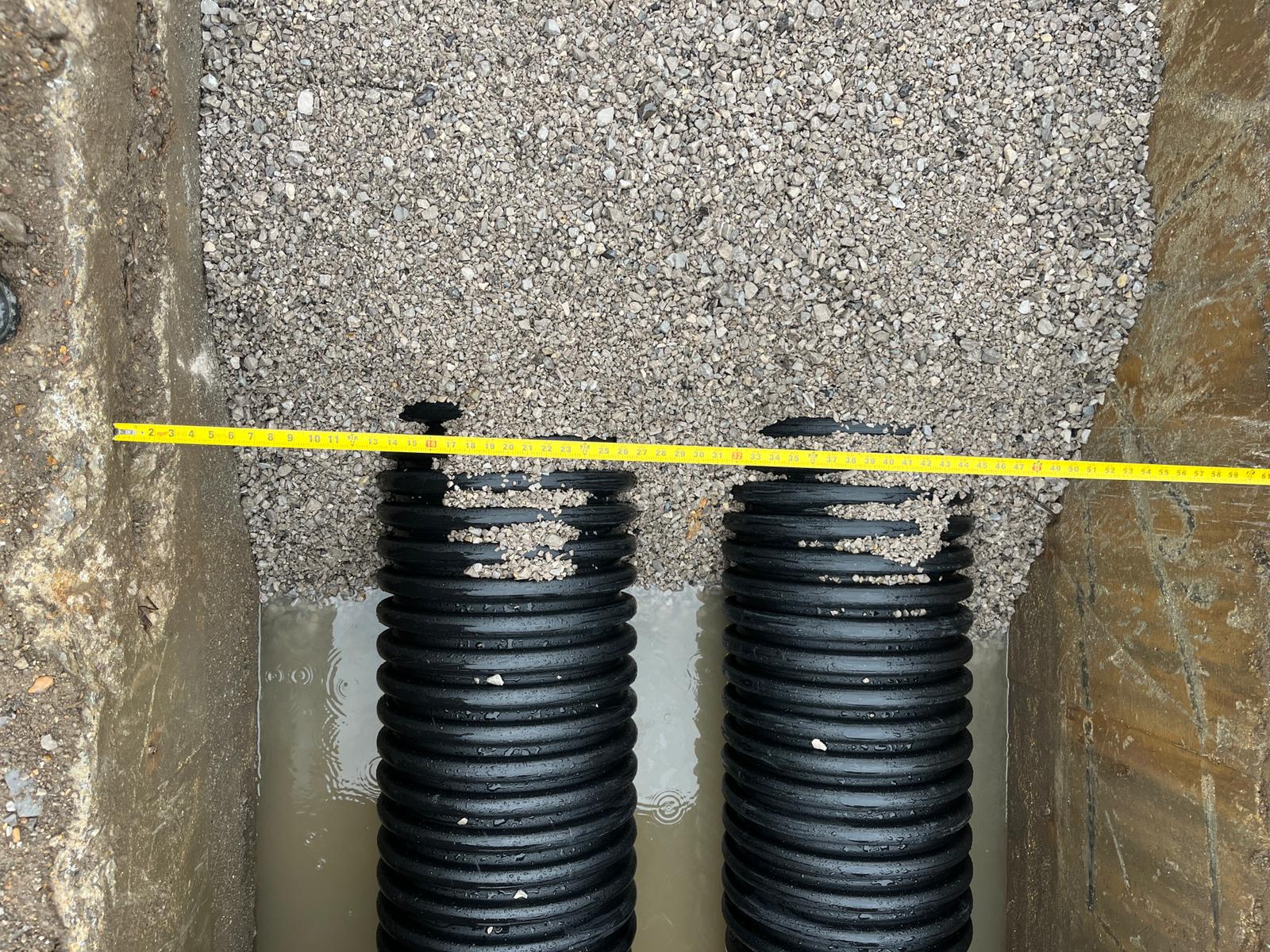

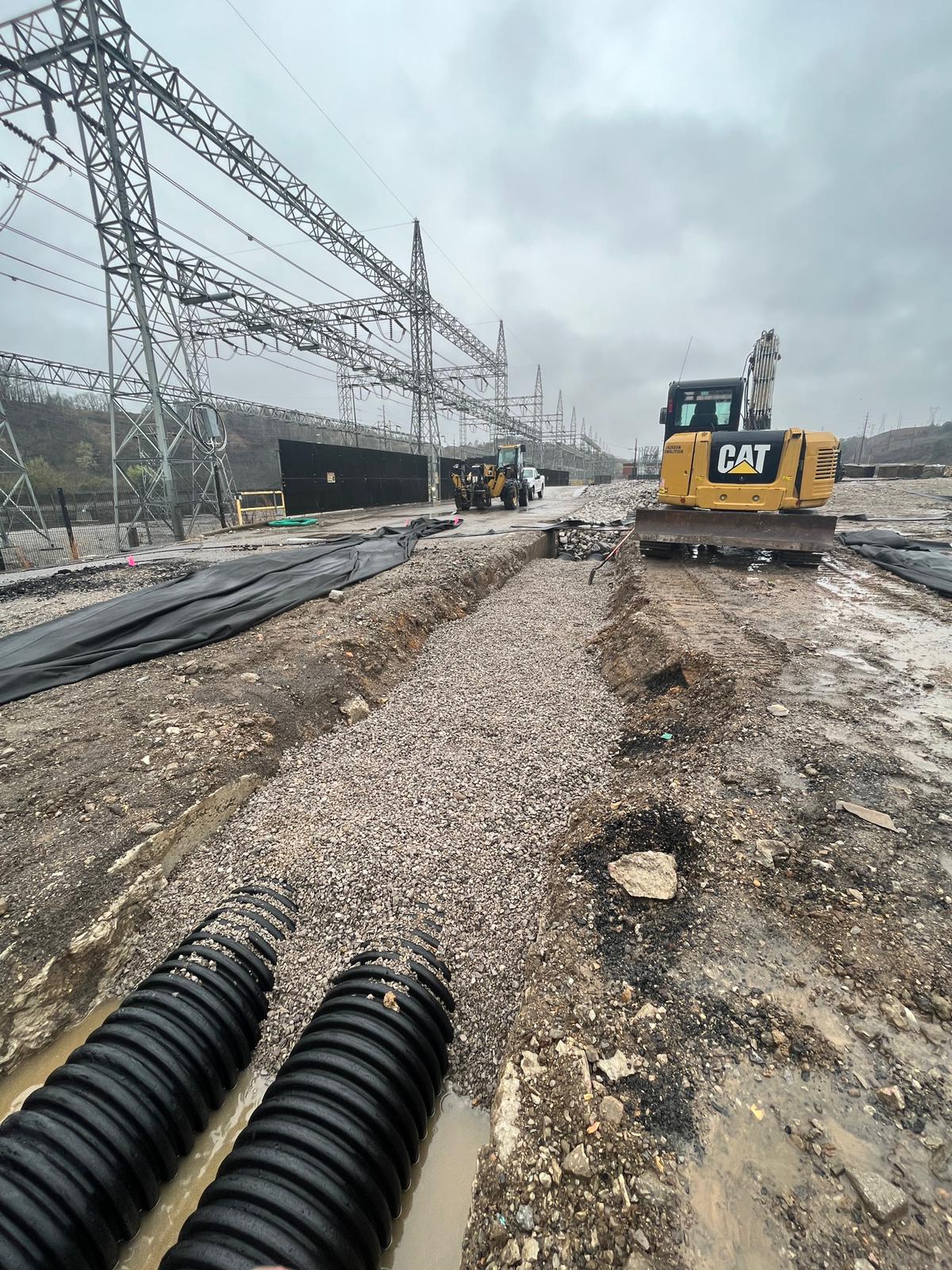

1. The contractor placed textile fabric over the concrete trench, and two 20-inch HDPE pipes I.D (18″) O.D 21″ were placed atop the textile fabric in the south trench located in area F7.

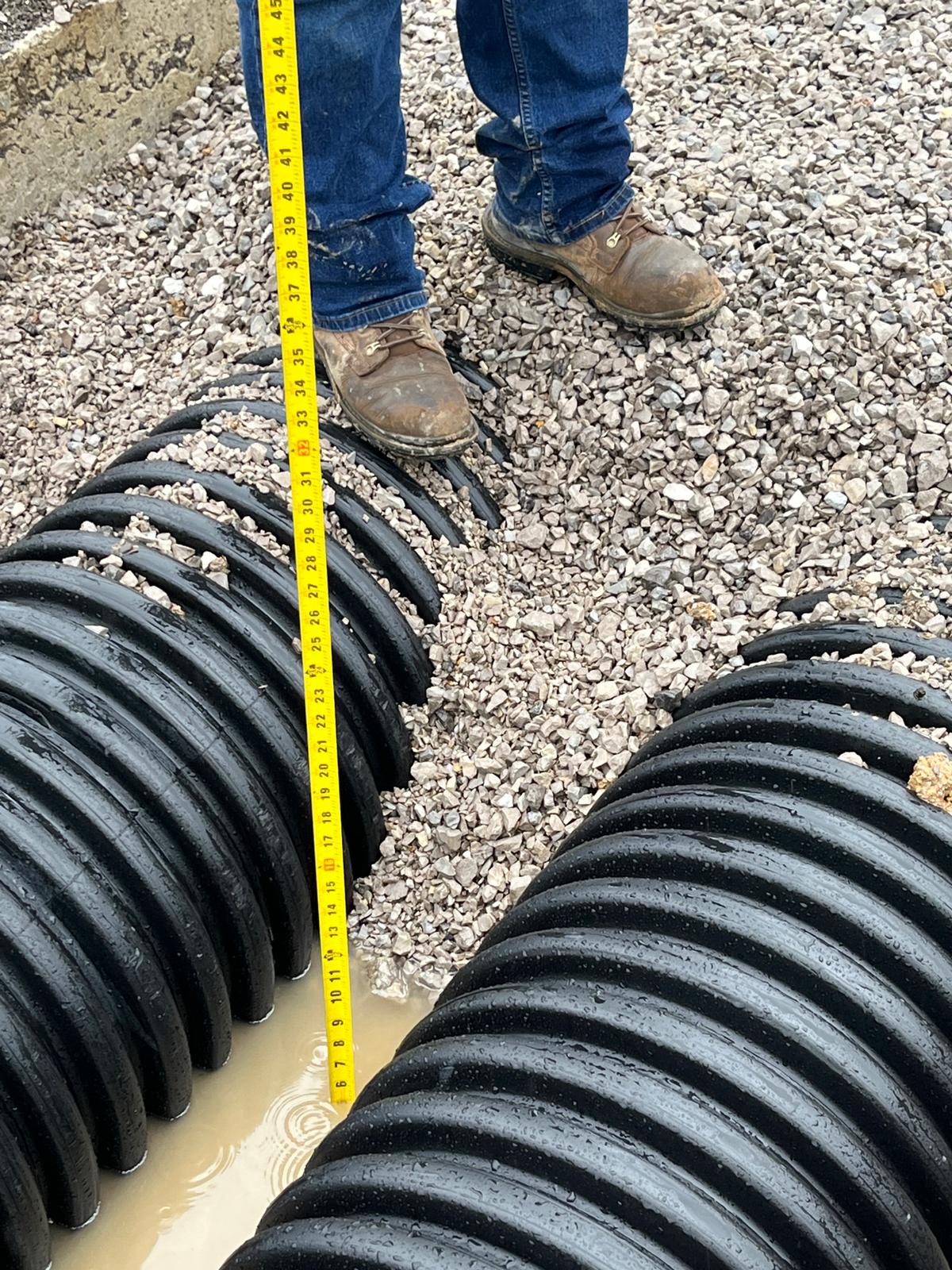

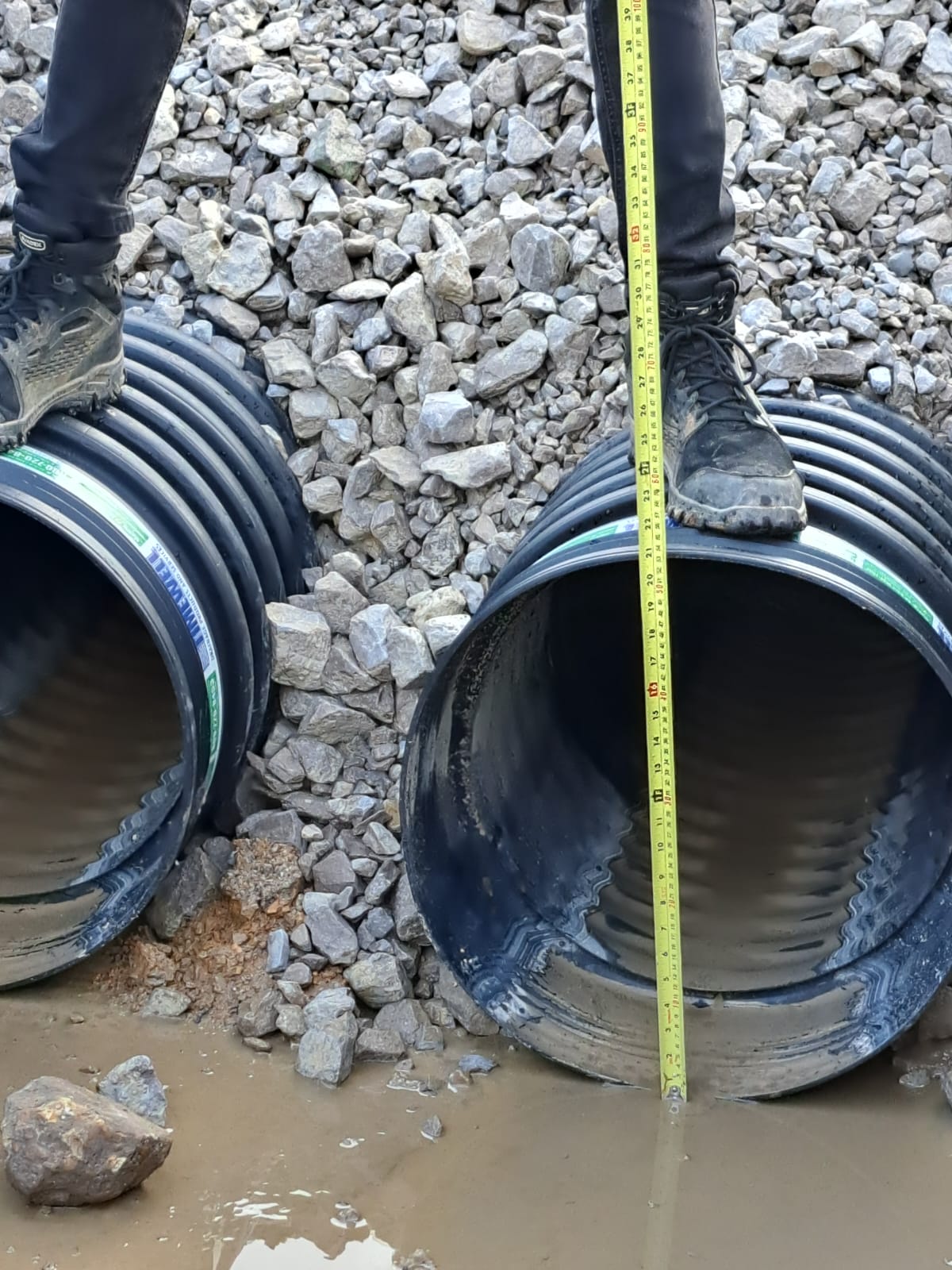

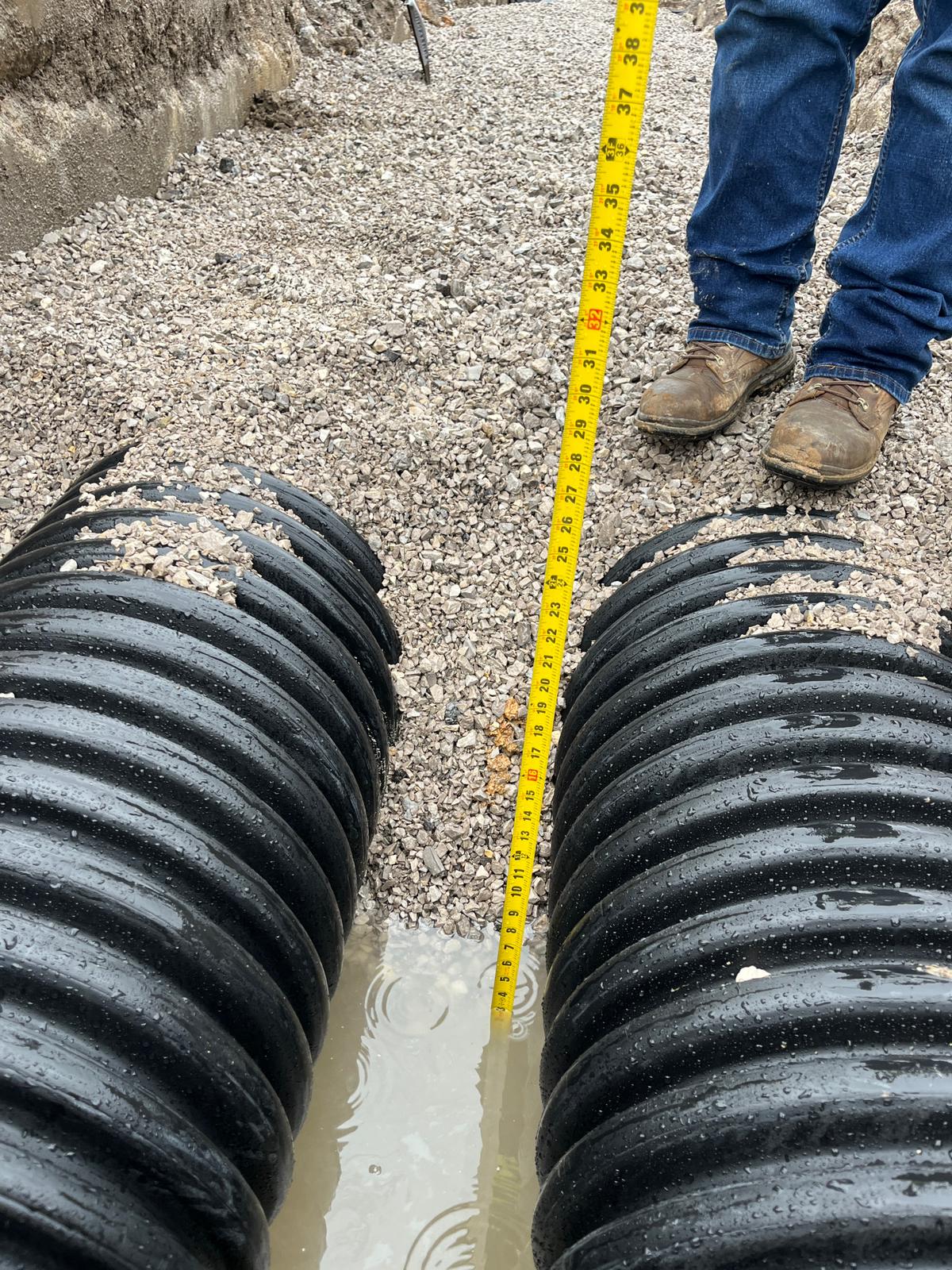

2. No. 57 stone was placed between pipes and trench walls, up to 4″ inches of cover to the top of the pipe.

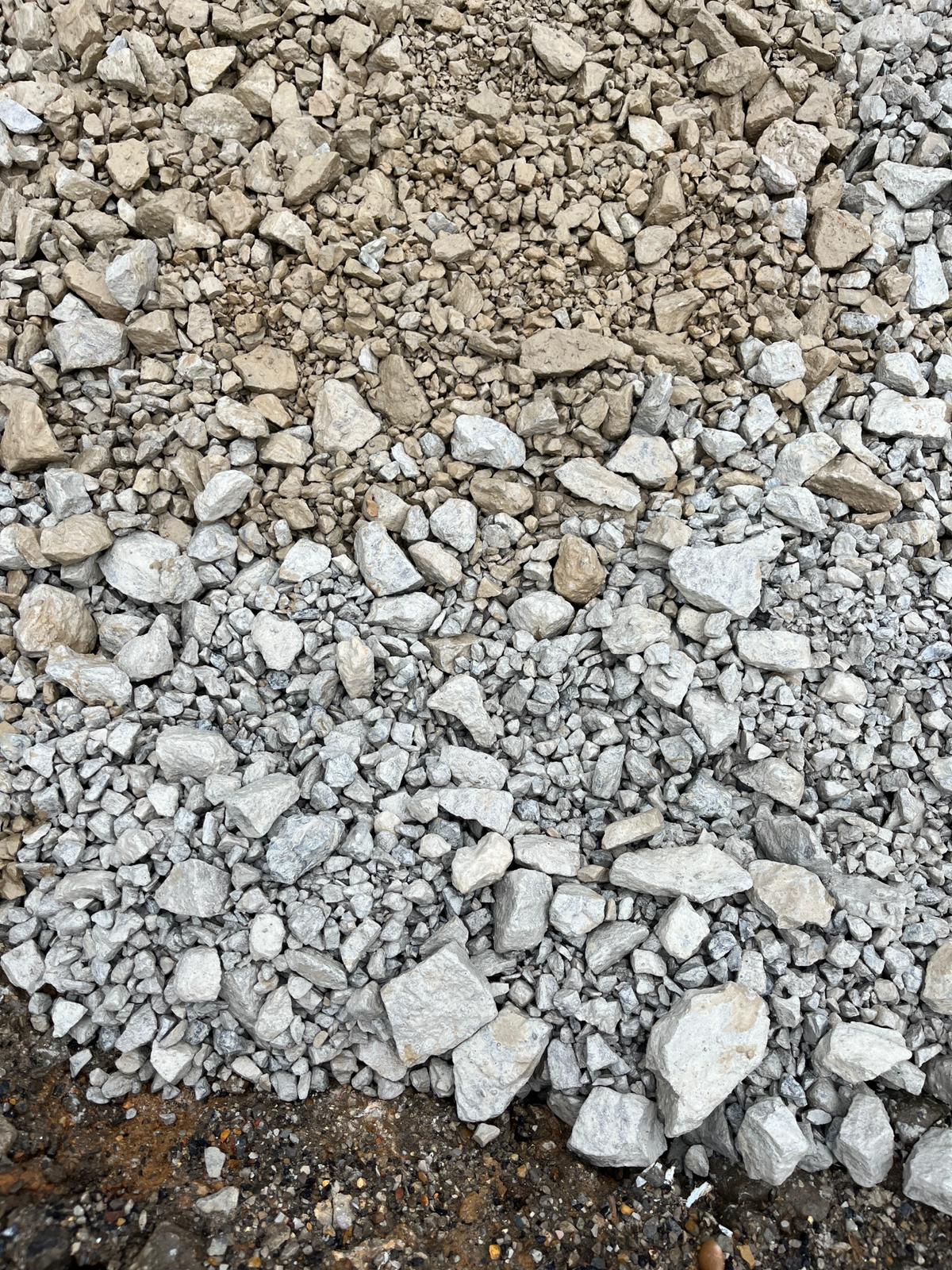

3. No. 57 and No. 24 stone was placed up to eight (8) inches below the finished grade.
4. Materials were placed in accordance with ITP: 13

Photo documentation is included below:
