Observations/Finding

On November 15, 2023, the undersigned ASEC representative visited the Lakeside Development site. The purpose of the visit was to inspect the undercutting of topsoil materials in Lots #68, 69, 70, and 71, and to evaluate surficial soils adjacent to Lots #34 through 37, which were in question by the contractor.

Inspection and Findings

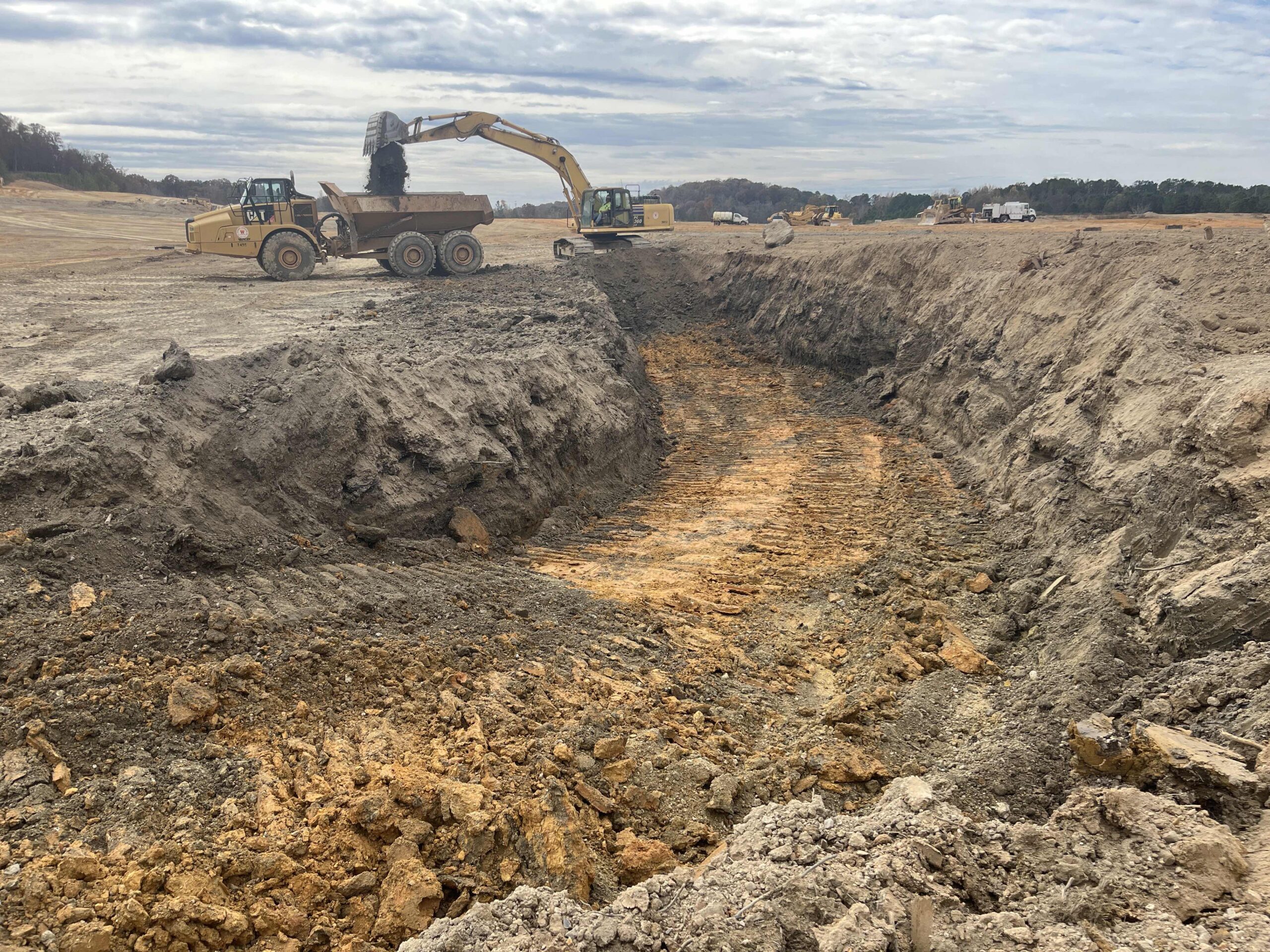

Undercutting of Topsoil in Lots #68, 69, 70, and 71

• The topsoil material depths in these lots were visually inspected quantity.

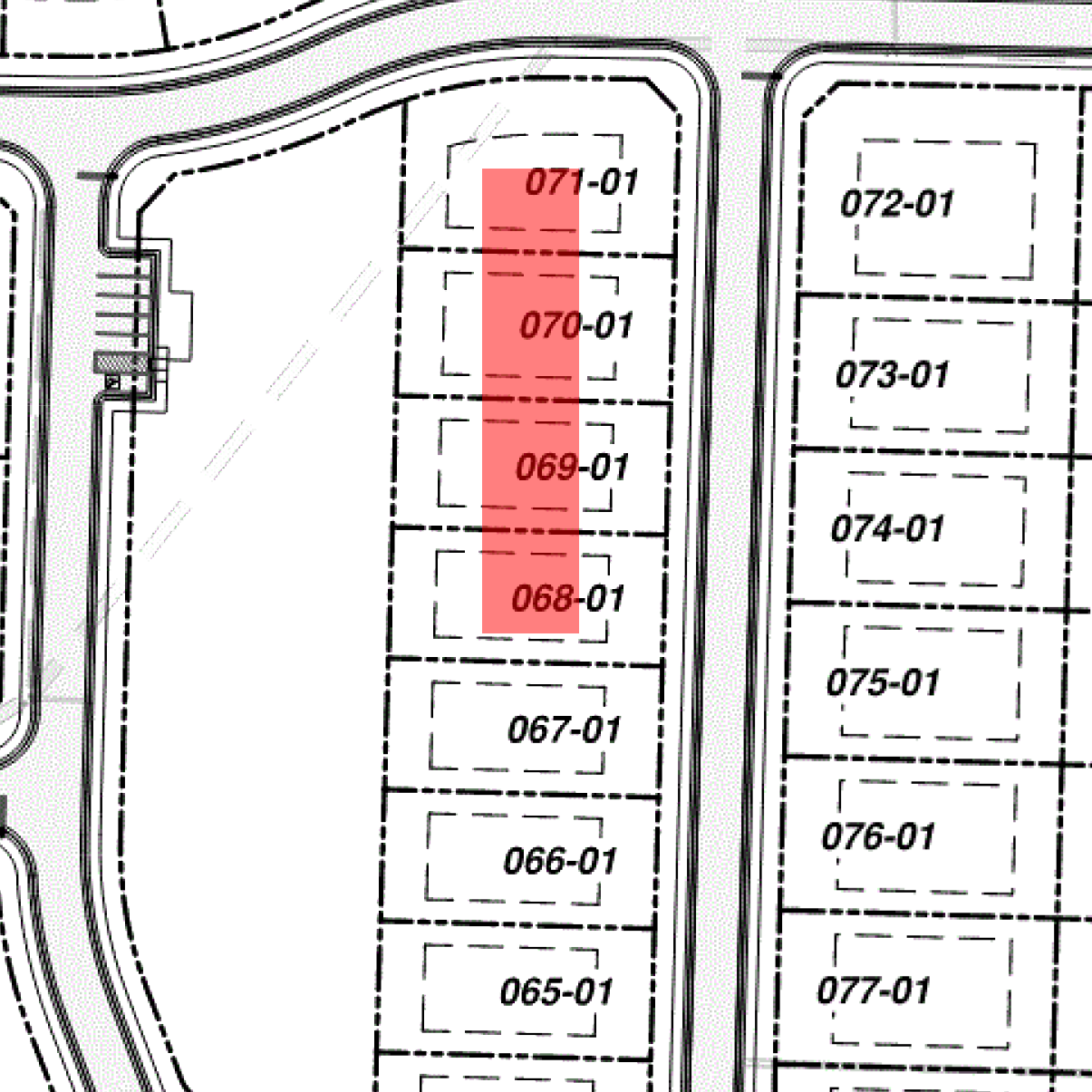

• The undercutting areas are shown in red on the attached drawing.

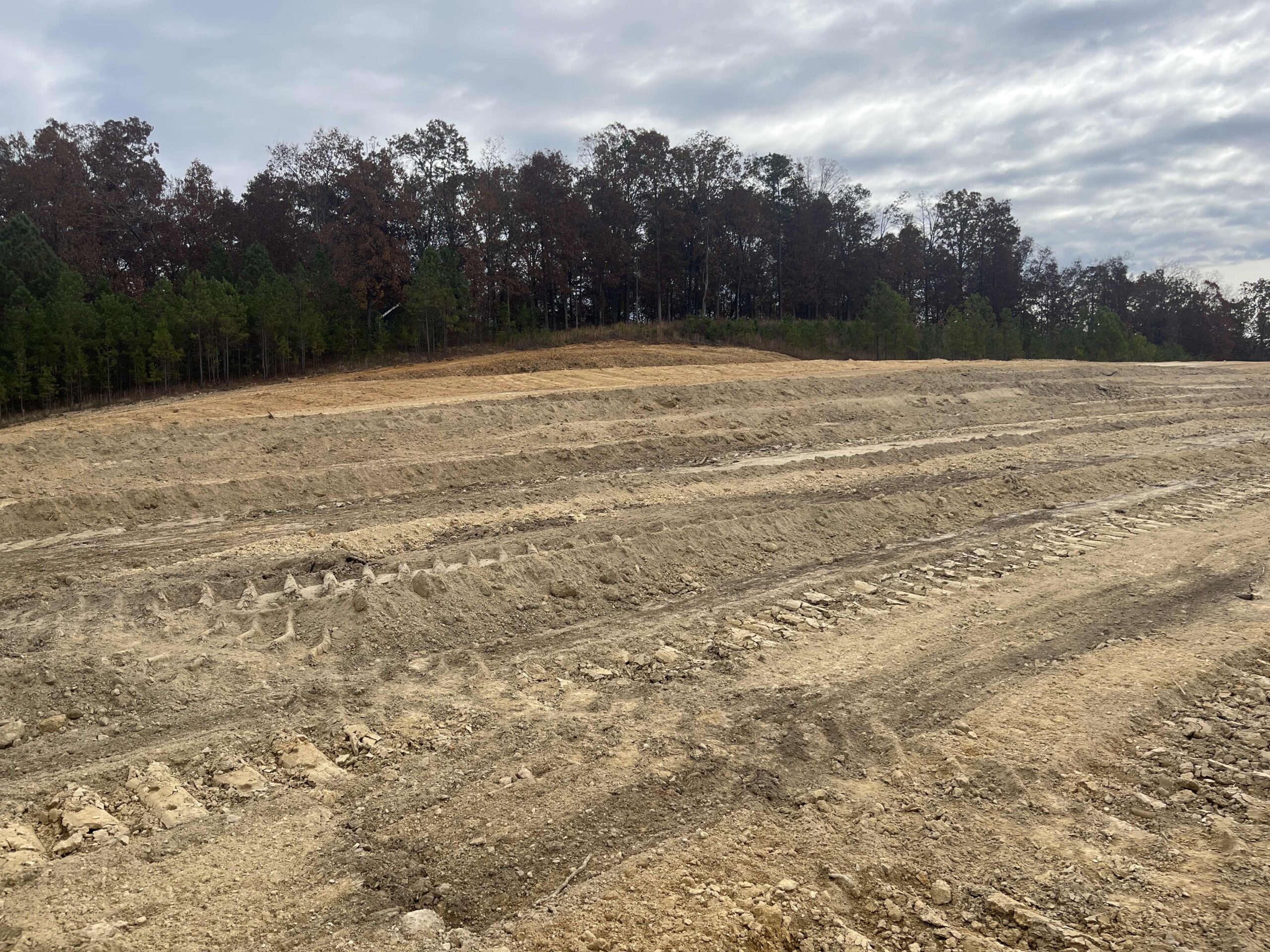

Evaluation of Soils Behind Lots #34 – 37

• The soils in this area were observed to be tan to brown, Silty fine to medium, and Sand.

Excavation of Large Boulders

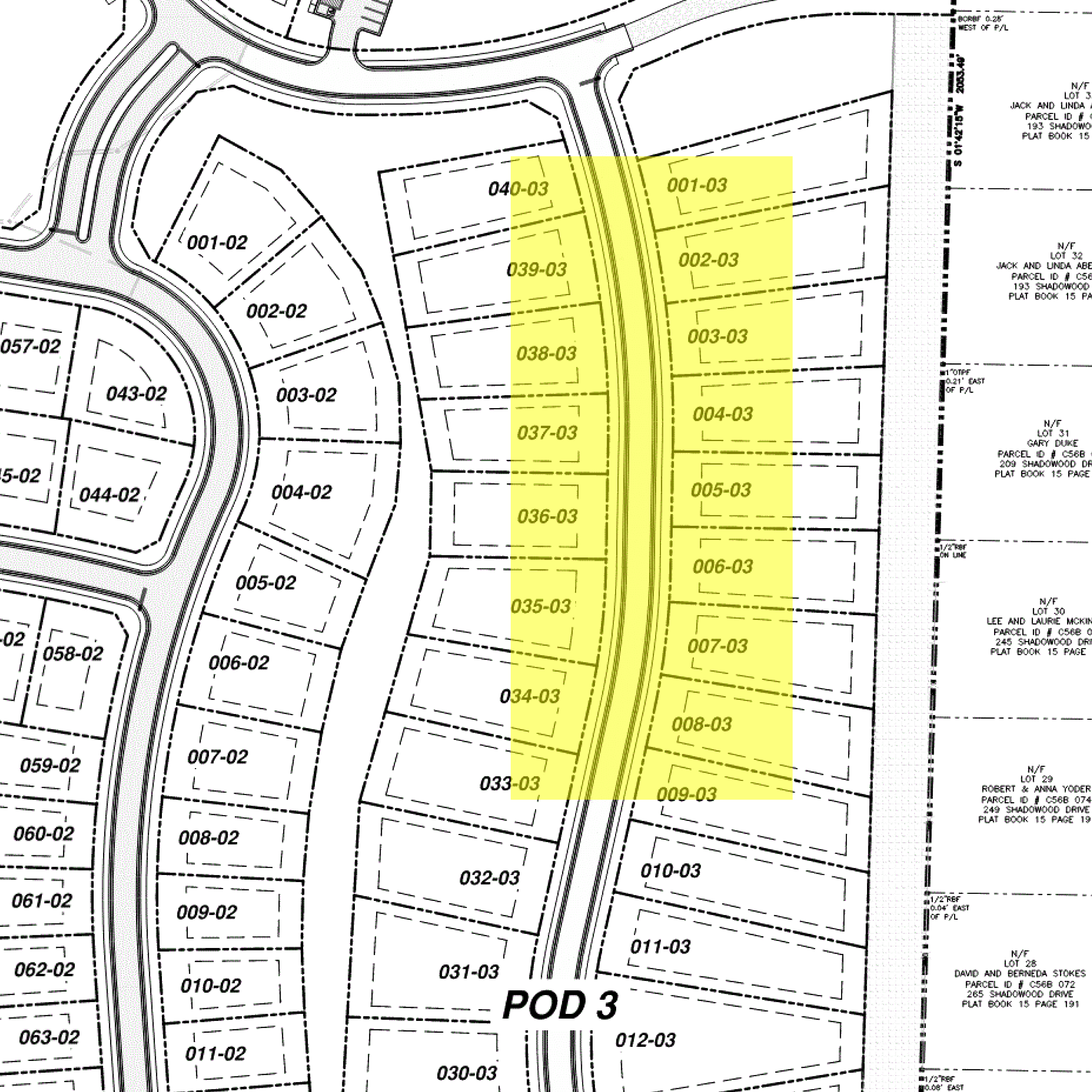

• Large boulders were excavated from the road in the area highlighted in yellow on the attached drawing.
