Observations/Finding

As requested, the site was visited by our AS Engineering and Consulting (ASEC) representative for the purpose of providing quality control inspection and testing services.  Visual observation techniques were employed to verify compliance with project drawing/specifications, applicable codes, and materials submittals. The following observations were observed on site this day.

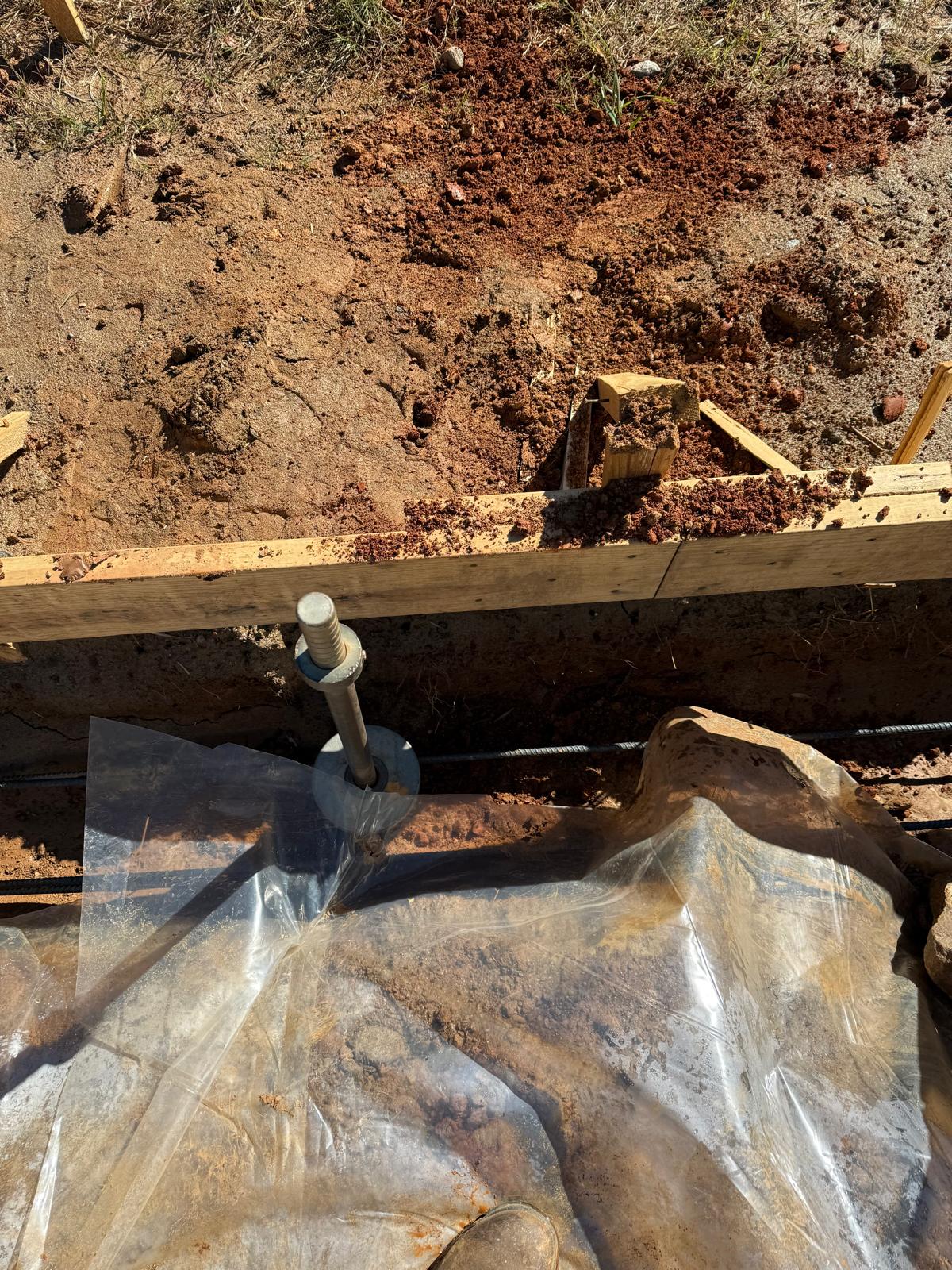

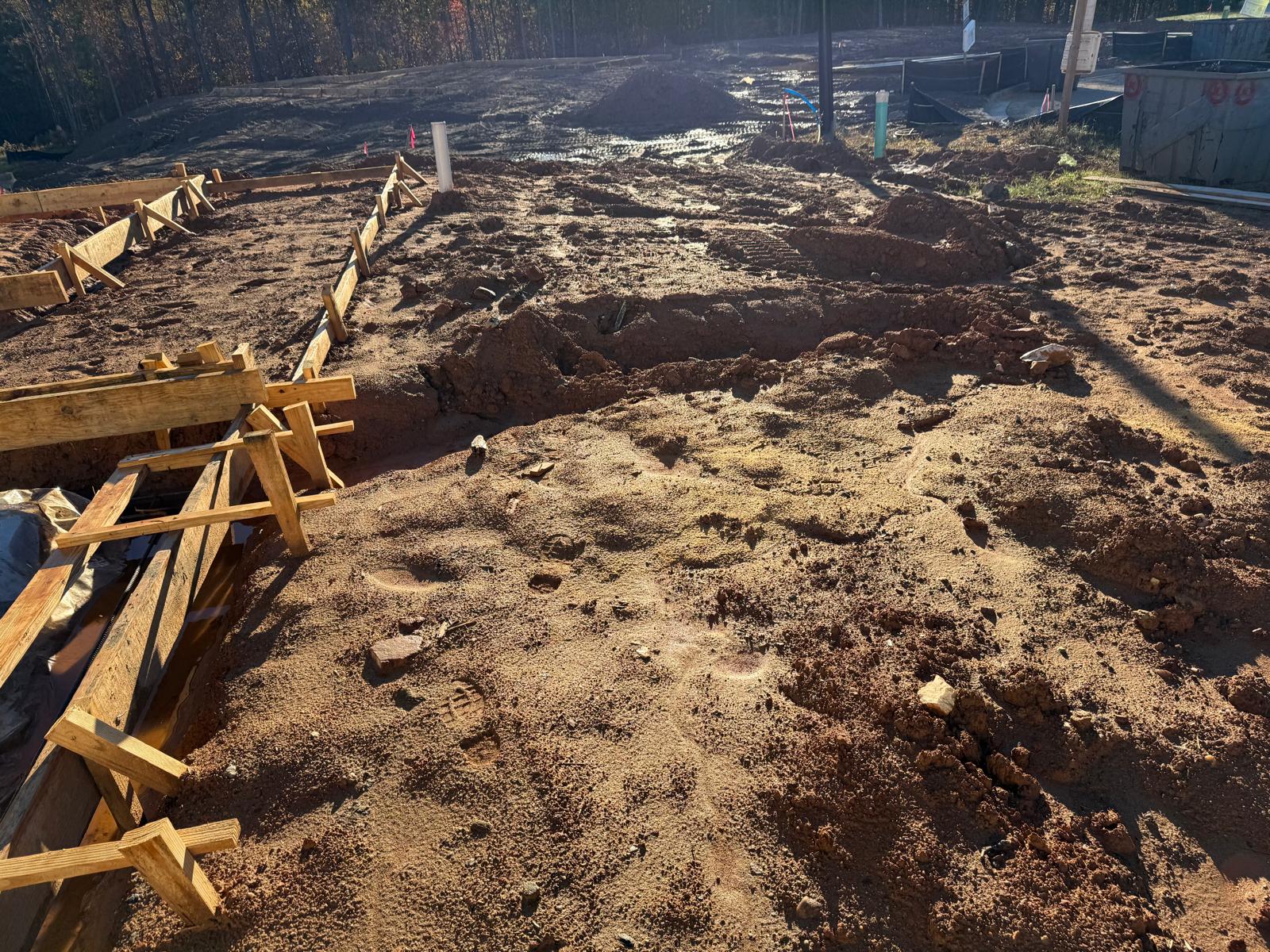

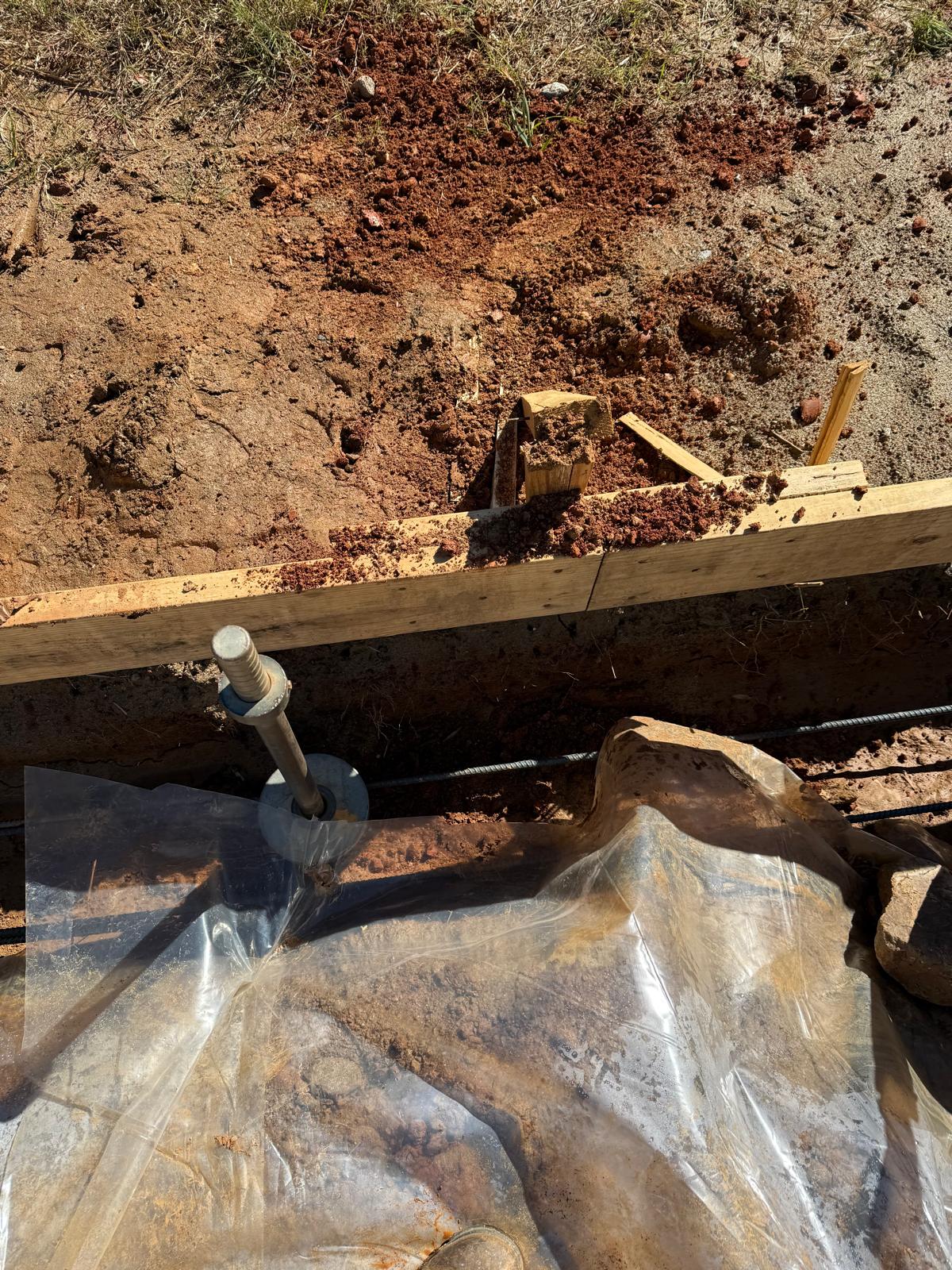

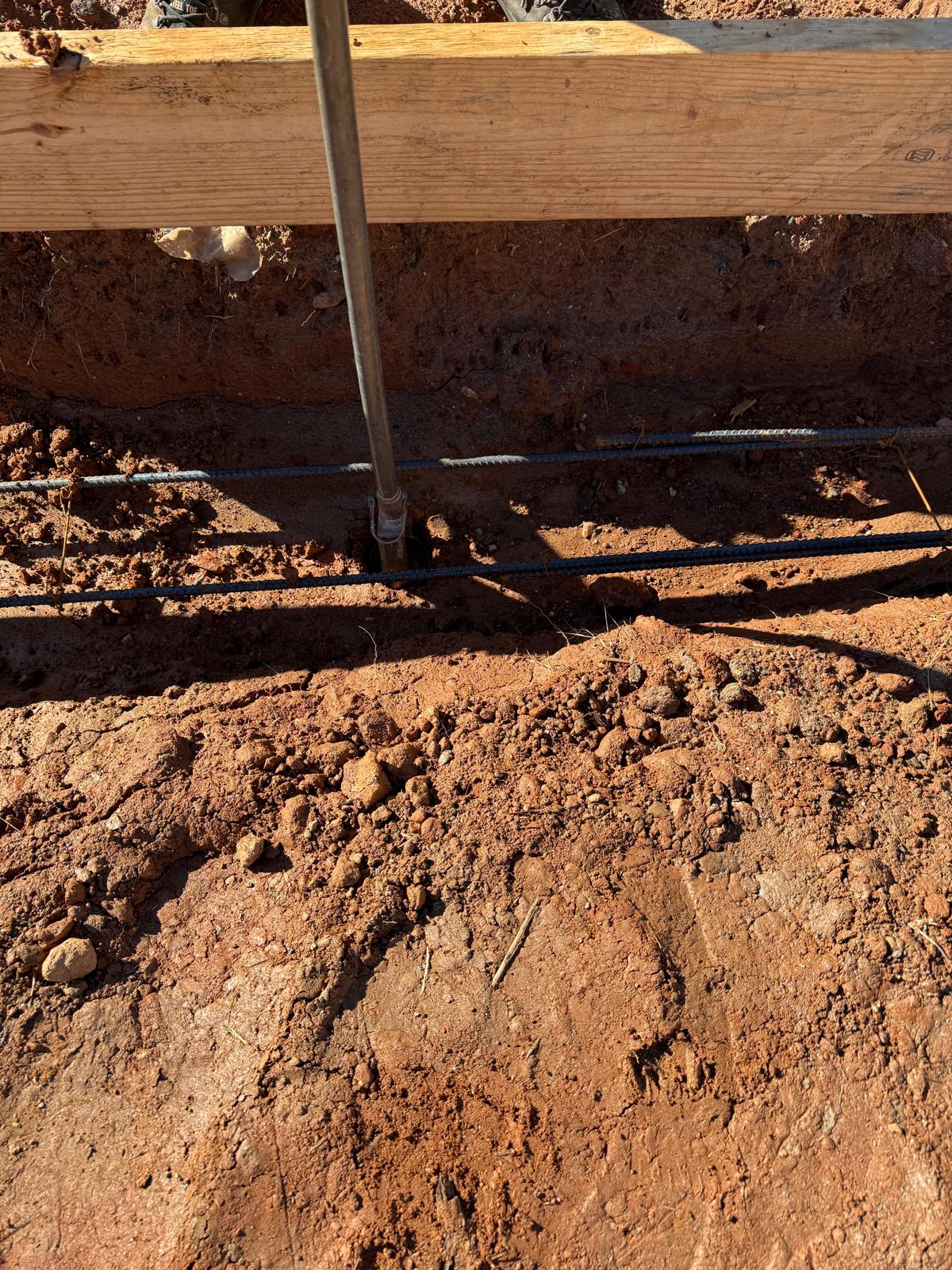

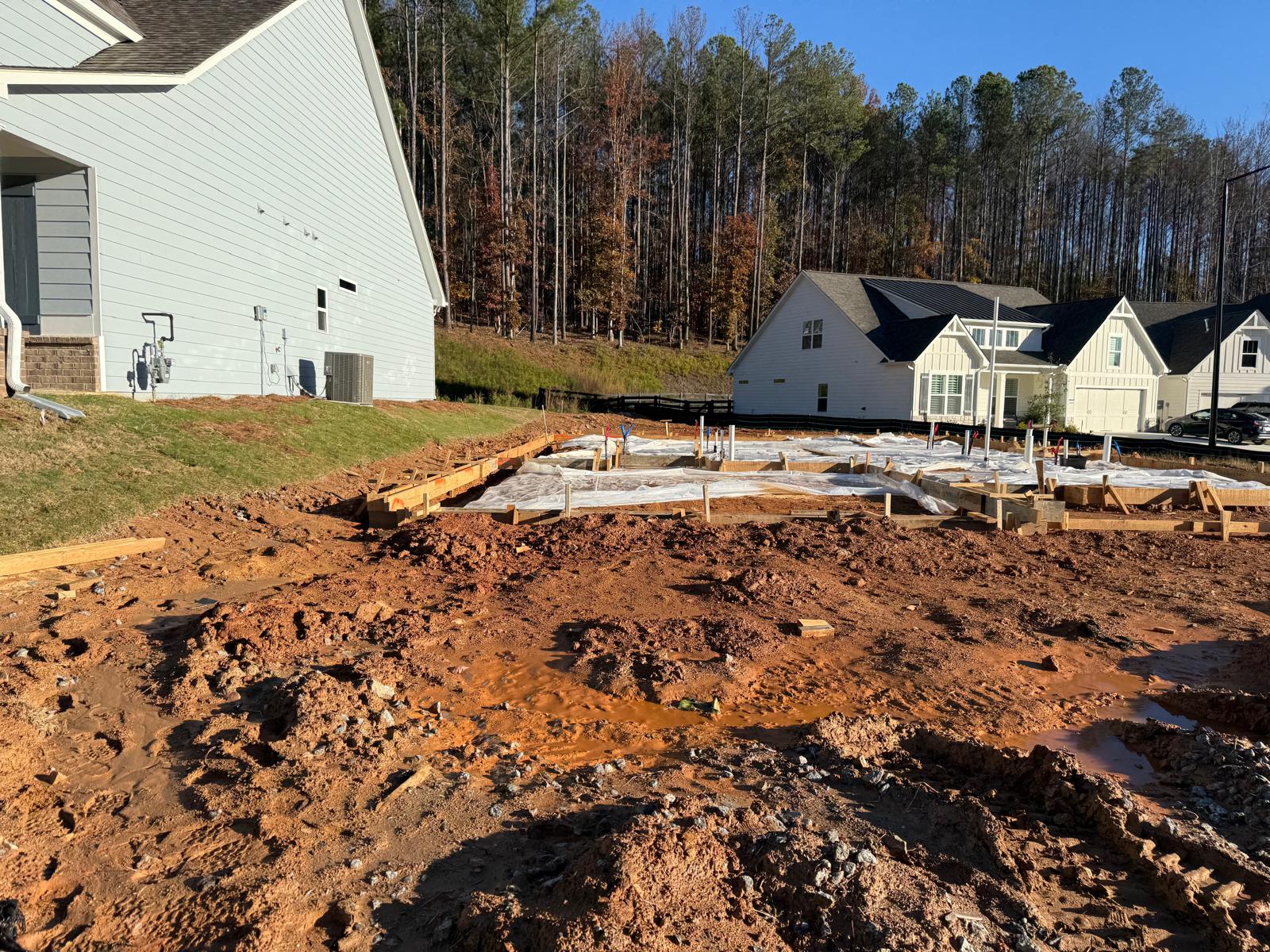

Nature walk: Footings Inspection (Lot #1007)

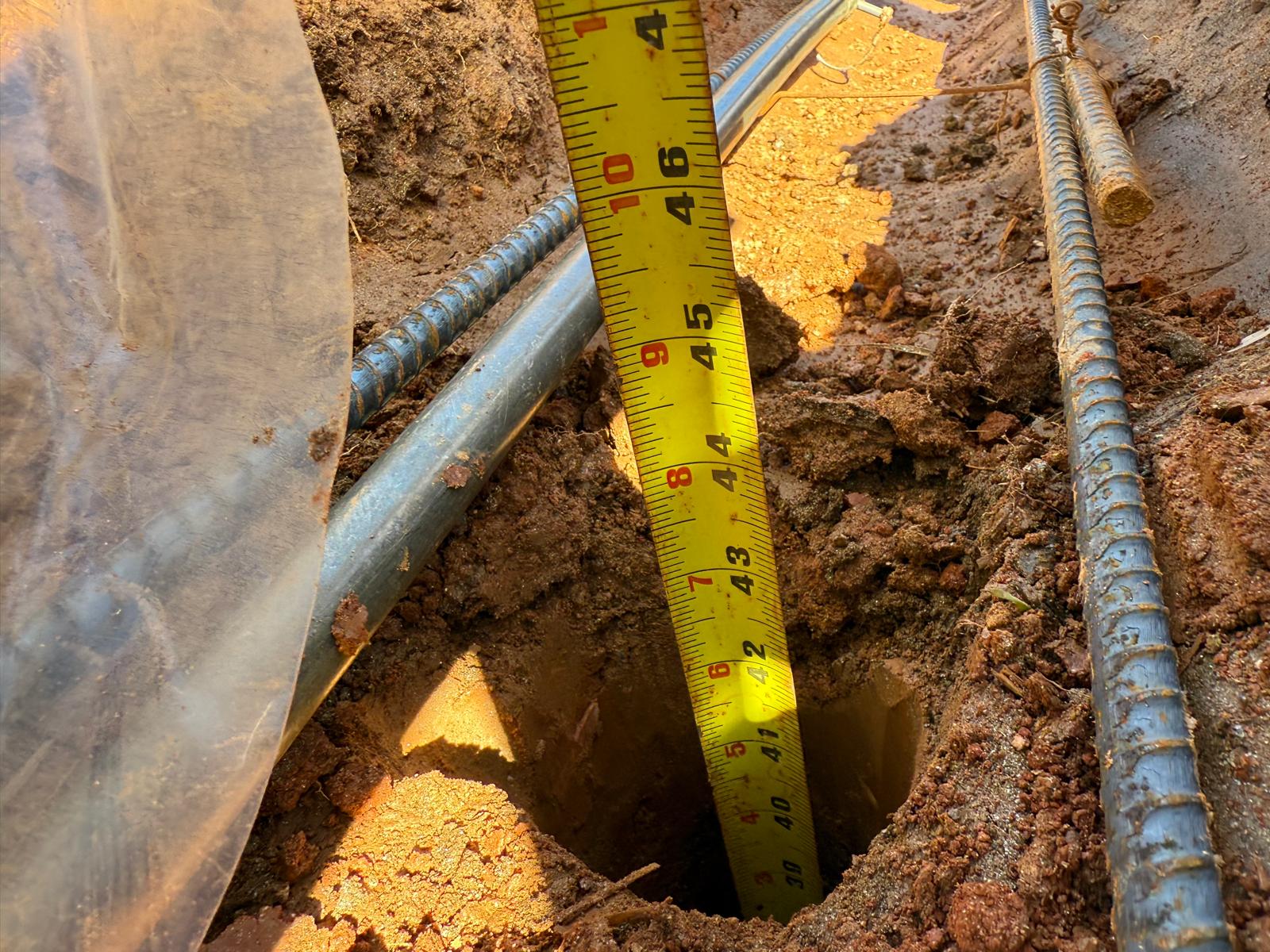

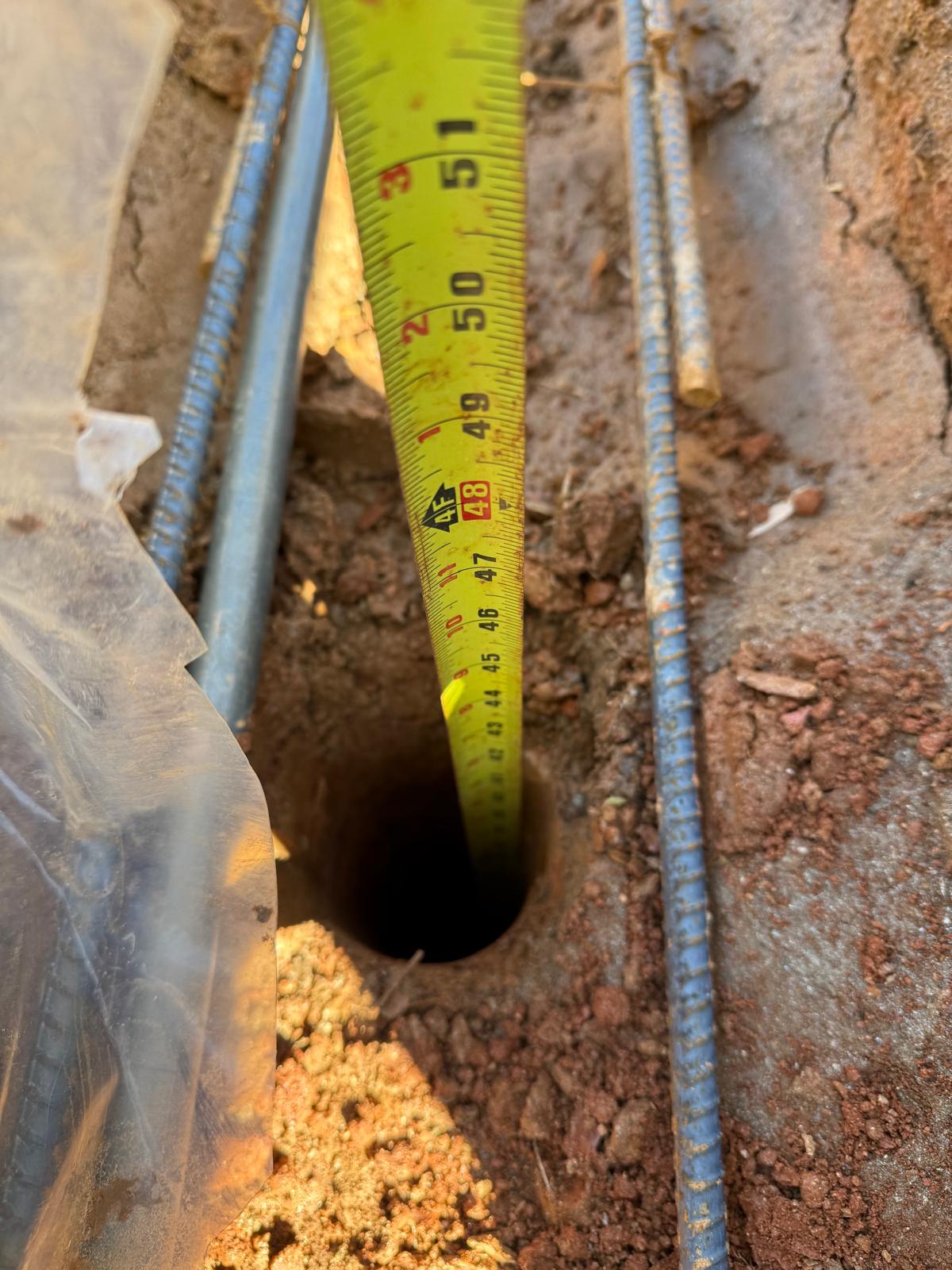

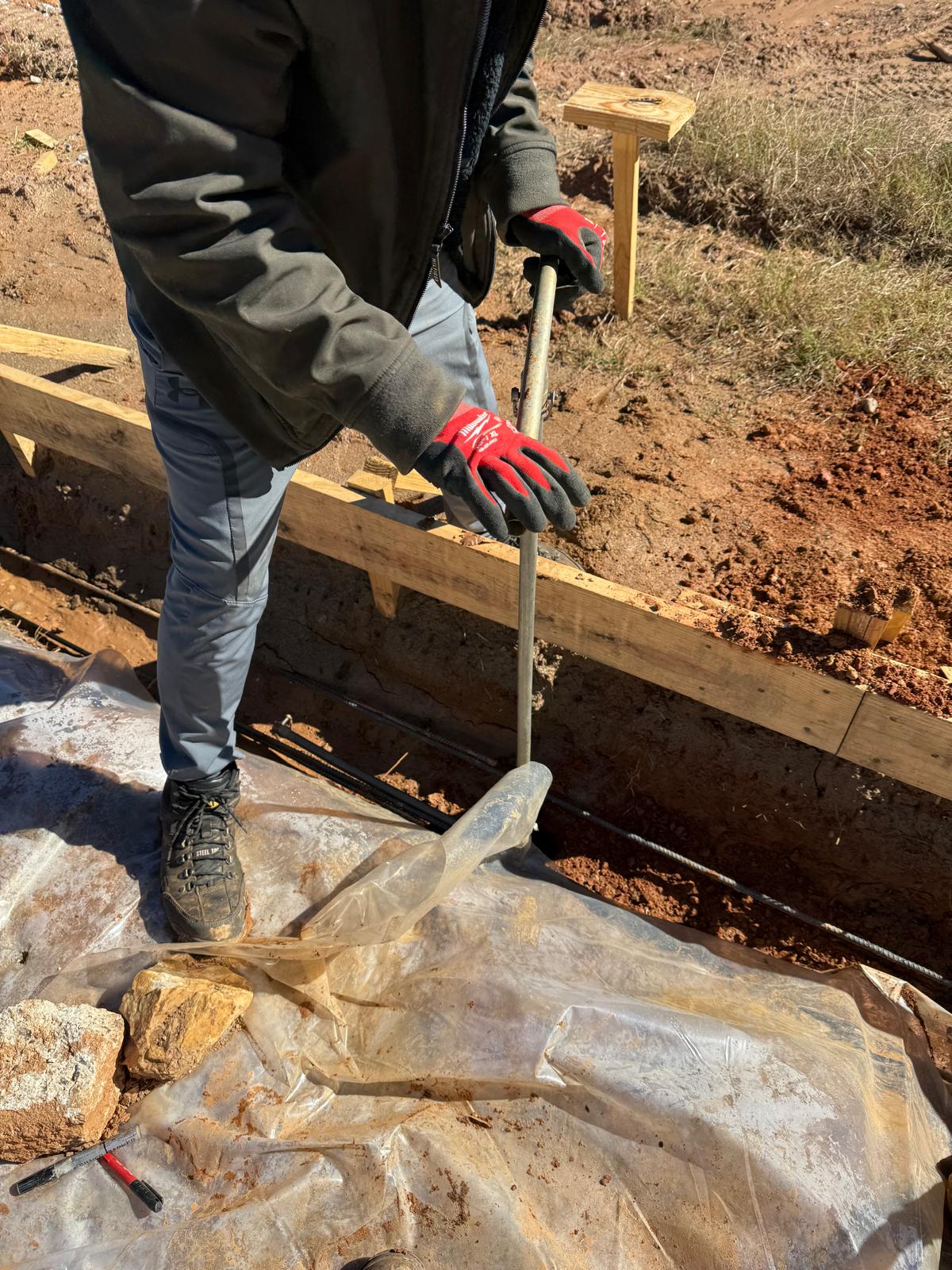

• A Dynamic Cone Penetrometer (DCP) test was performed on all four sides of Lot #1007, revealing the presence of small stones and rocks, which resulted in auger refusal at relatively different depths.
  • West Side: Auger refusal was encountered at a depth of 3 feet, with 7 blows at 1 foot and 6 blows at 2 feet. Refusal was followed by an offset at 2 feet, requiring 13 blows at 1 foot.
  • South Side: Auger refusal was encountered at a depth of 3 feet, with 7 blows at 1 foot and 5 blows at 2 feet. Refusal was followed by an offset at 2 feet, requiring 5 blows at 1 foot.
  • East Side: Auger refusal was encountered at a depth of 4 feet, with 3 blows at 1 foot, 5 blows at 2 feet, and 14 blows at 3 feet.
  • North Side: Auger refusal was encountered at a depth of 2 feet, with 6 blows at 1 foot. Refusal was followed by an offset at 2 feet, requiring 9 blows at 1 foot.

  These results indicate varying depths of auger refusal across the site, reflecting different subsurface conditions.

We appreciate the opportunity to be of service to you on this project. If you have any questions regarding this report, please feel free to contact us. We will be more than happy to discuss it with you
