Observations/Finding

As requested, the site was visited by our AS Engineering and Consulting (ASEC) representative for the purpose of providing quality control inspection and testing services.  Visual observation techniques were employed to verify compliance with project drawing/specifications, applicable codes, and materials submittals. The following observations were observed on site this day.

Seven Hills: Amenities

• Upon arrival, the contractor was engaged in attempting to recompact the Pickle ball court parking using a Komatsu PC 360LC and cut from the west of the job site. It was observed that the sheeps-foot compactor displayed pumping of the surficial soils.
• Mr. Clyde Smith of AS Engineering & Consulting suggested cutting down 6 inches with the dozer to examine the underlying wet soils.  It was determined that the wet soils went down 1 foot.  It was recommended that this top foot be cut out, scarified, aerated and replaced in 6 to 8 inch lifts and recompacted.

We appreciate the opportunity to be of service to you on this project. If you have any questions regarding this report, please feel free to contact us. We will be more than happy to discuss it with you.

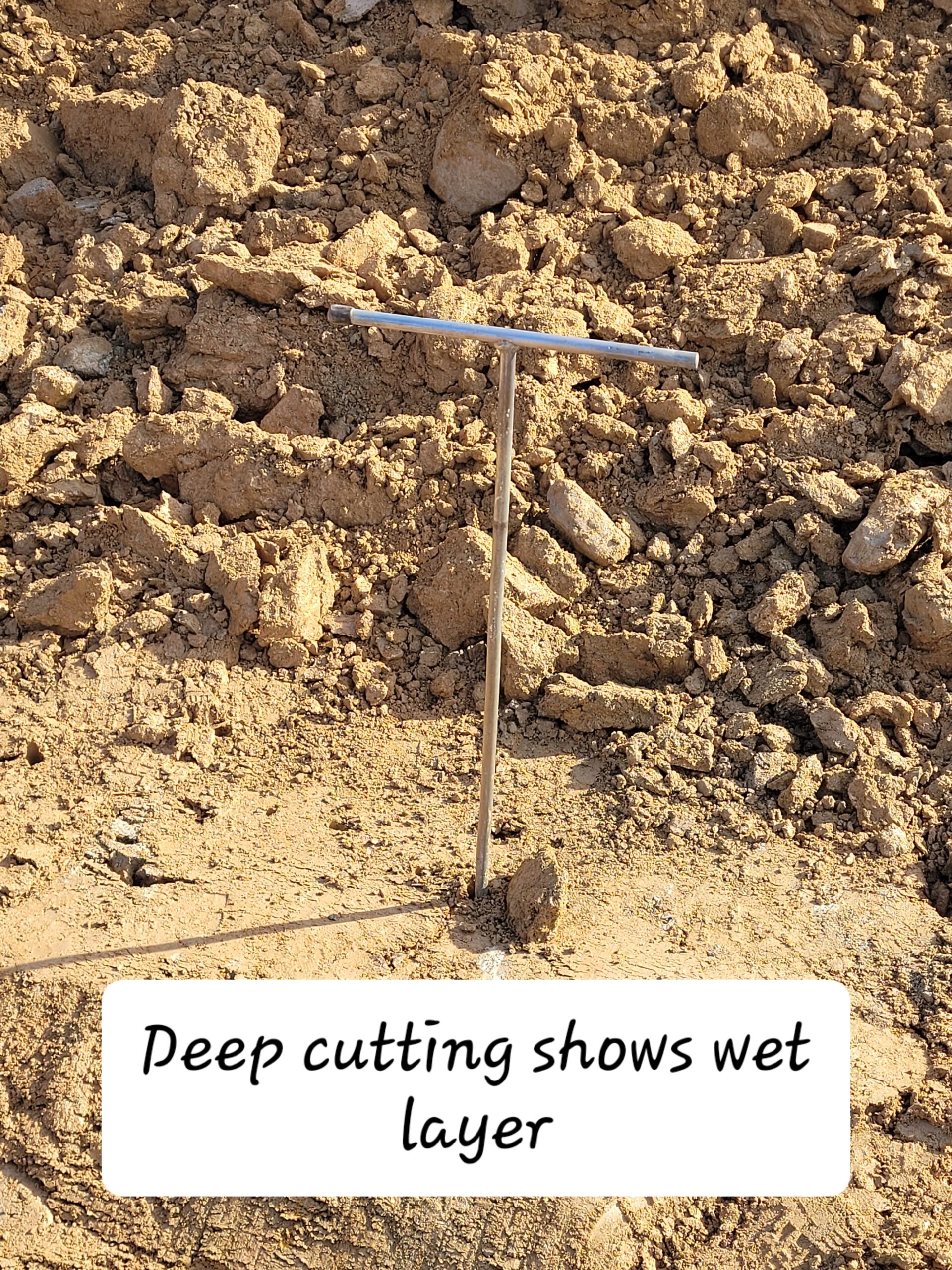

Prob rod showing a foot deep wet layer.
