Observations/Finding

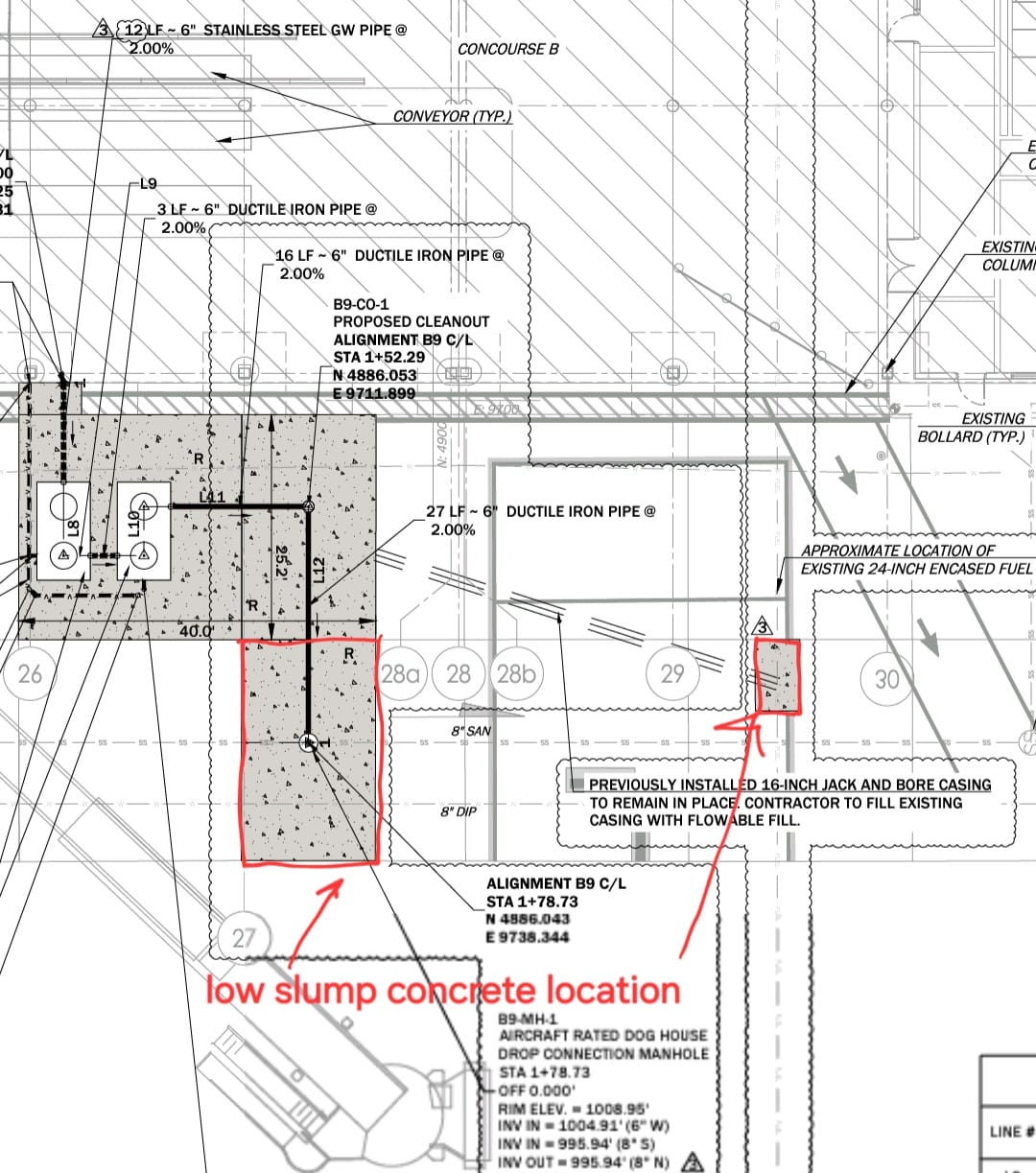

At the request of the client’s representative, our AS ENGINEERING AND CONSULTING, LLC (ASEC) representative, Amin Azimi visited the job site to observe and monitor the contractor’s work activities from a quality standpoint to assure compliance with project drawings/specifications, applicable codes, and materials submittals and conducted QC testing per the project drawings and specifications.  The following observations were made on site for concourse B Gate B9, grease traps this shift:

• The writer visually inspected the installation and setup of these lanes and advised the contractor representatives of any minor corrections that were needed.

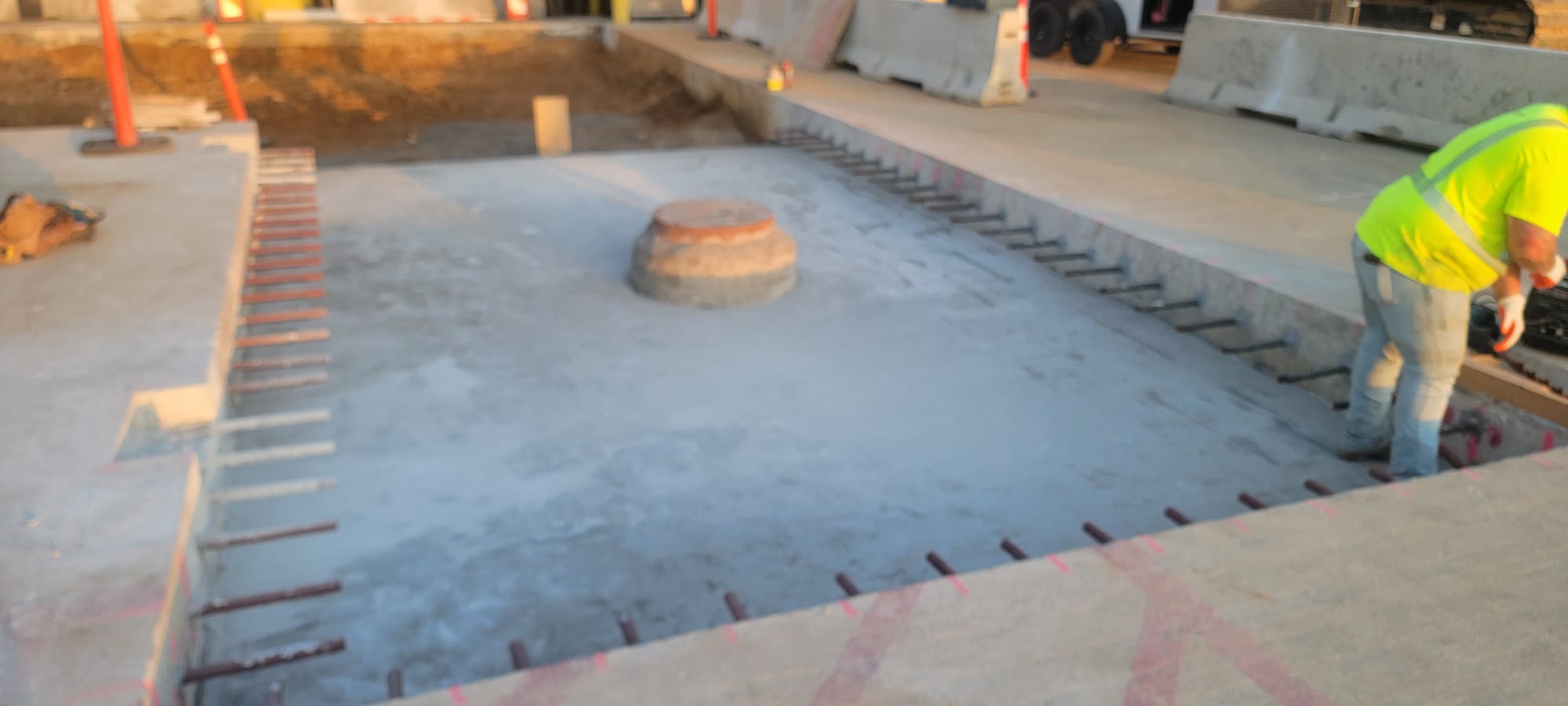

• The contractor cleaned loose rock and debris and standing water from the base.

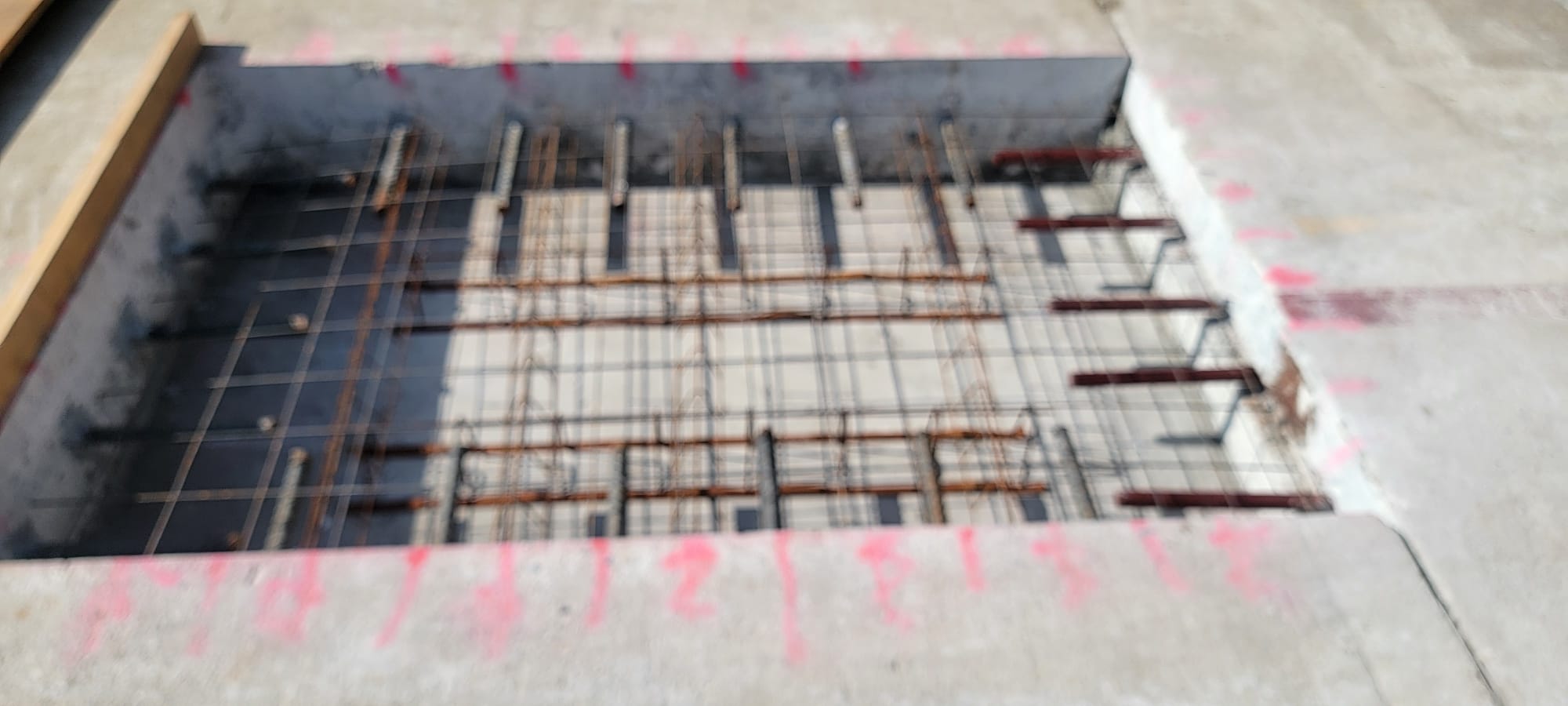

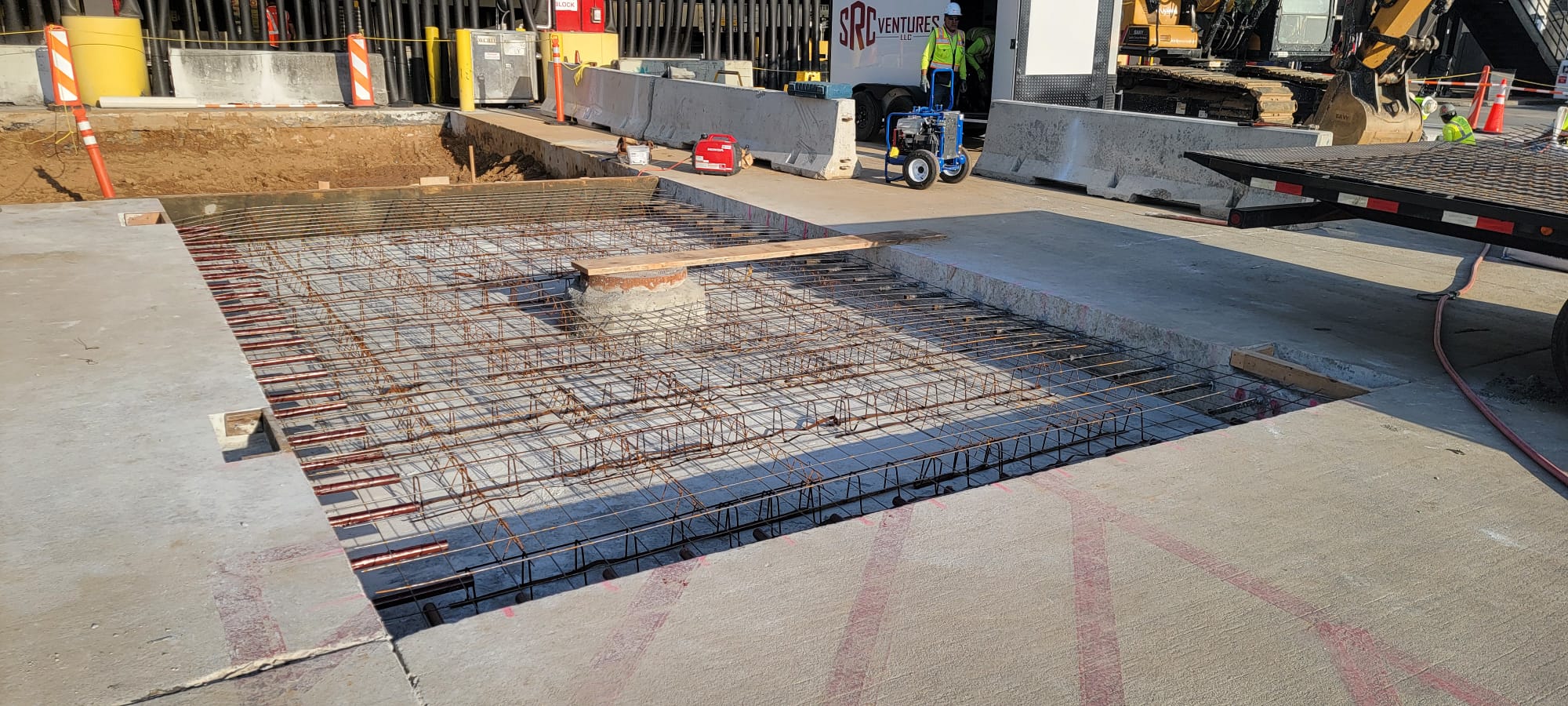

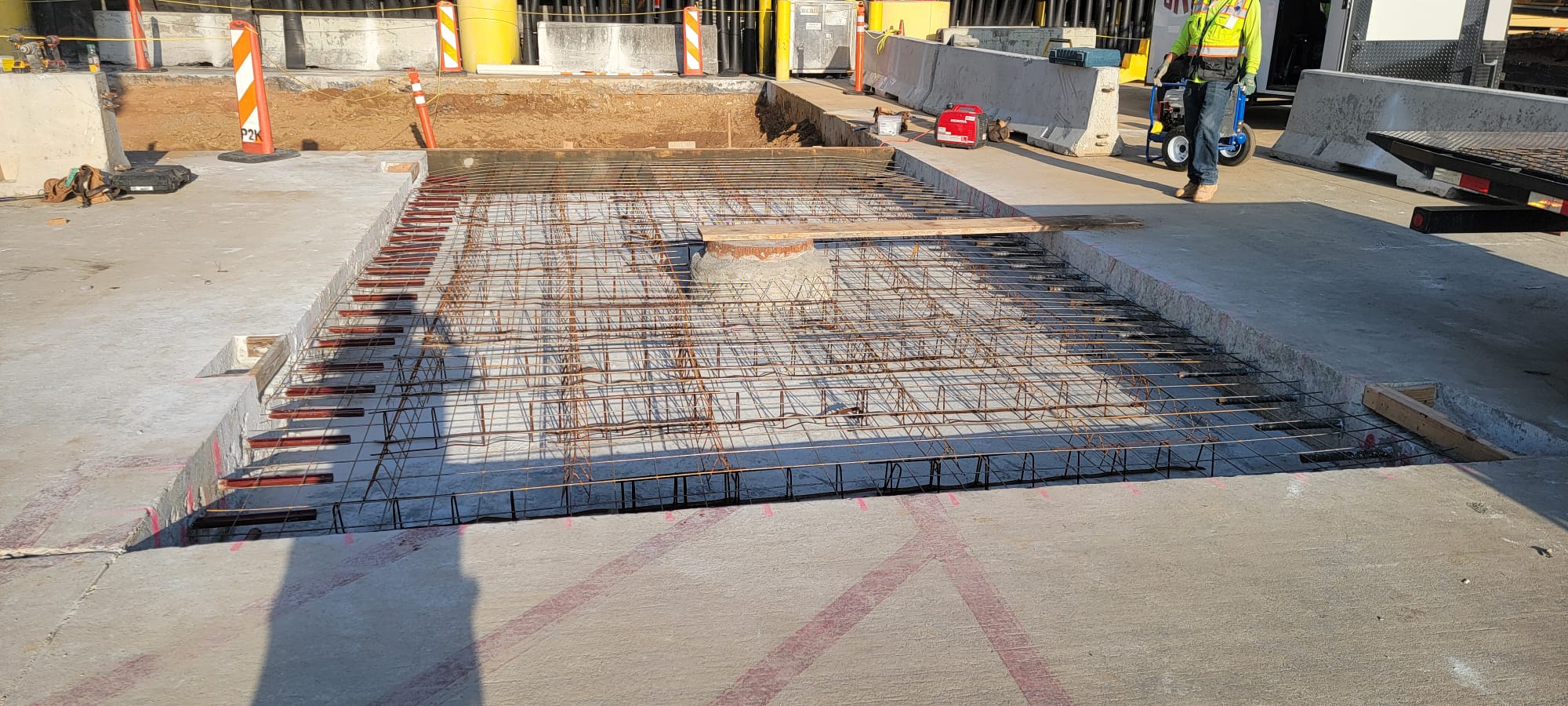

• Baskets were found to be level, straight and secured.

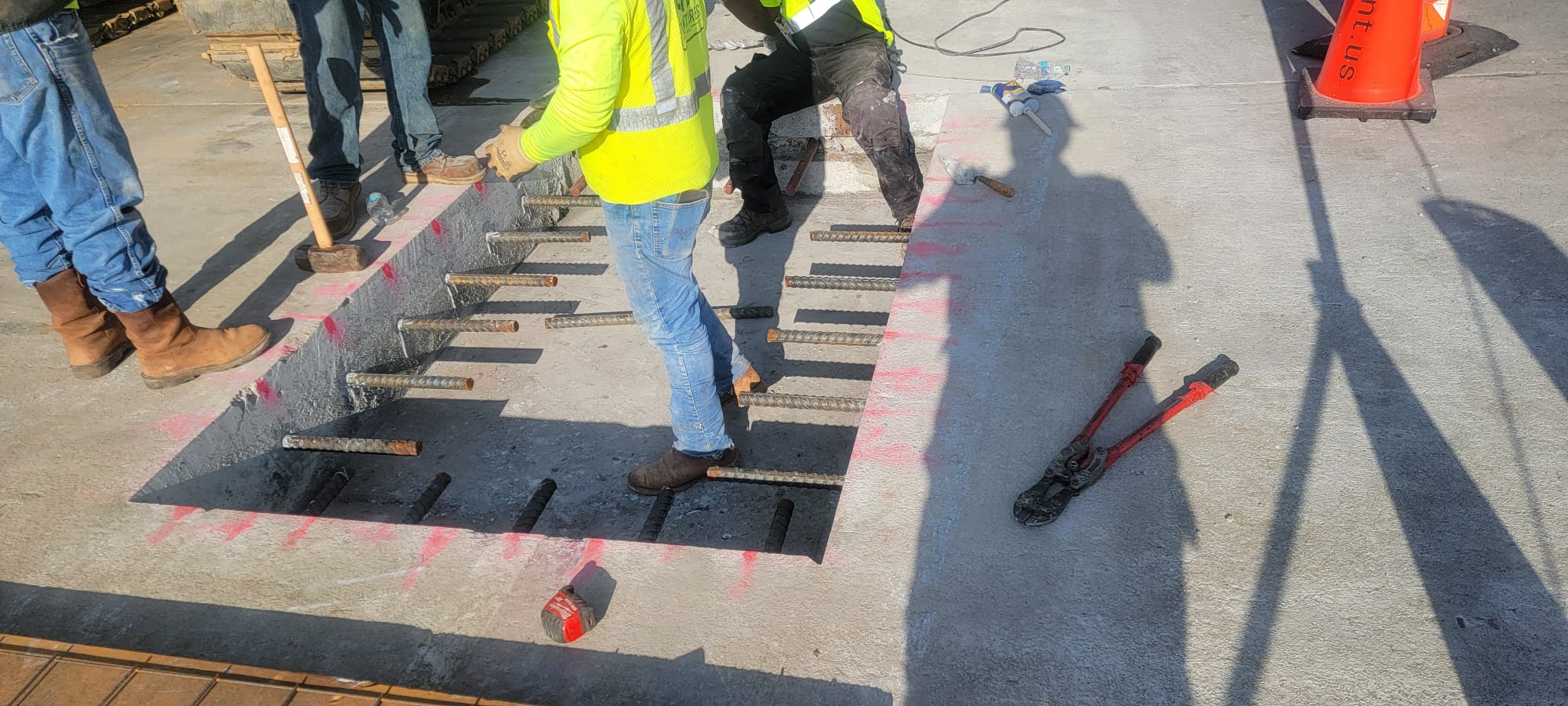

• Dowel bars were found to have epoxy.  Embedment length appeared to be 15 inches into concrete.

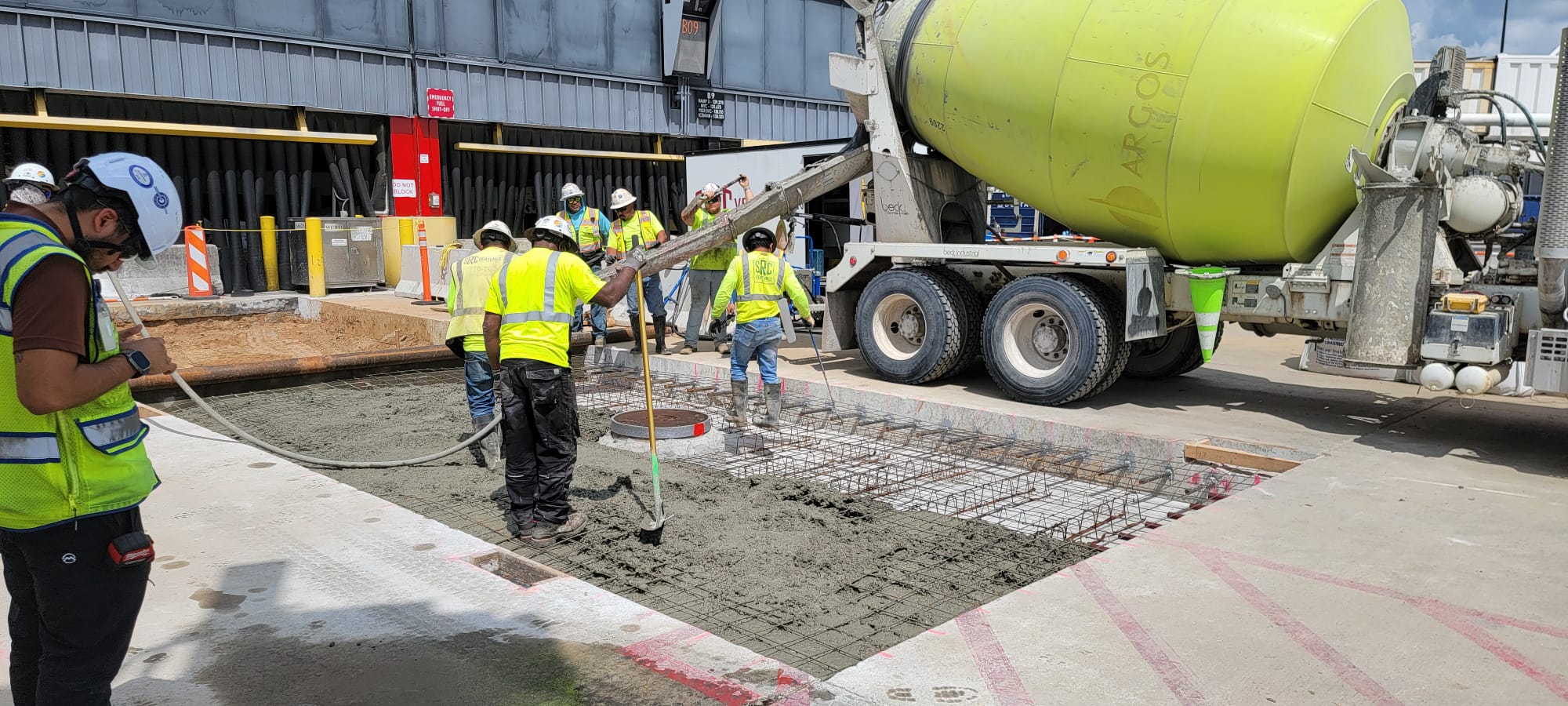

• Performed the sampling and casting of 7 beams
• Transferred previously cast test cylinders to our lab.

We appreciate the opportunity to be of service to you on this project. If you have any questions regarding this report, please feel free to contact us. We will be more than happy to discuss it with you.
