Observations/Finding

As requested, the site was visited by our AS Engineering and Consulting (ASEC) representative for the purpose of providing quality control inspection and testing services.  Visual observation techniques were employed to verify compliance with project drawing/specifications, applicable codes, and materials submittals. The following observations were observed on site this day.

On the above date our representative was on site to observe the grading contractor perform subgrade preparation at the roadway placing fill between sta.0+75 to 2+25. The writer performed density tests using a nuclear gauge model 3430, serial no. 91643. Compaction results were in compliance with job specifications.

We appreciate the opportunity to be of service to you on this project. If you have any questions regarding this report, please feel free to contact us. We will be more than happy to discuss it with you.

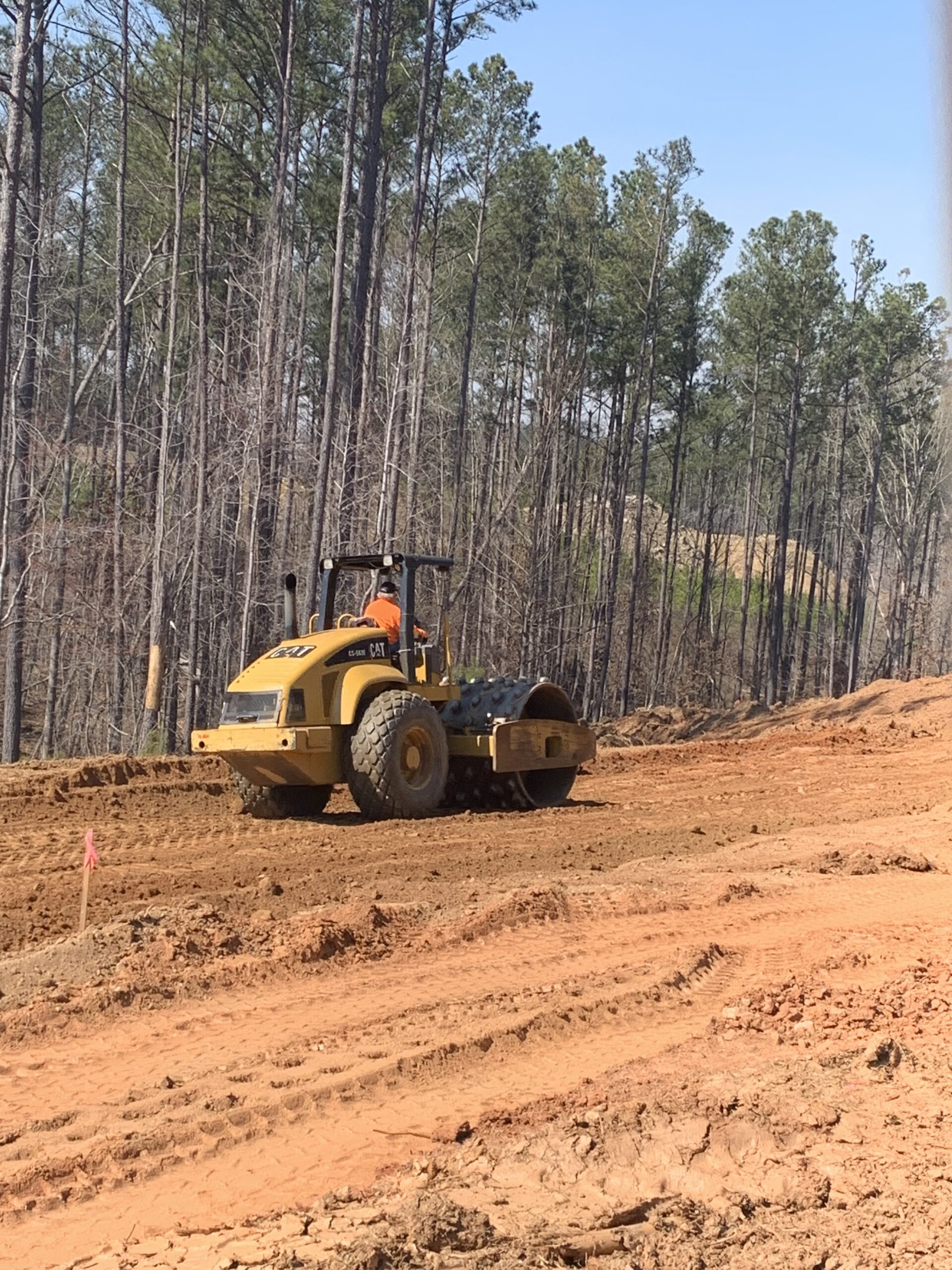

Compacting in place fill at roadway

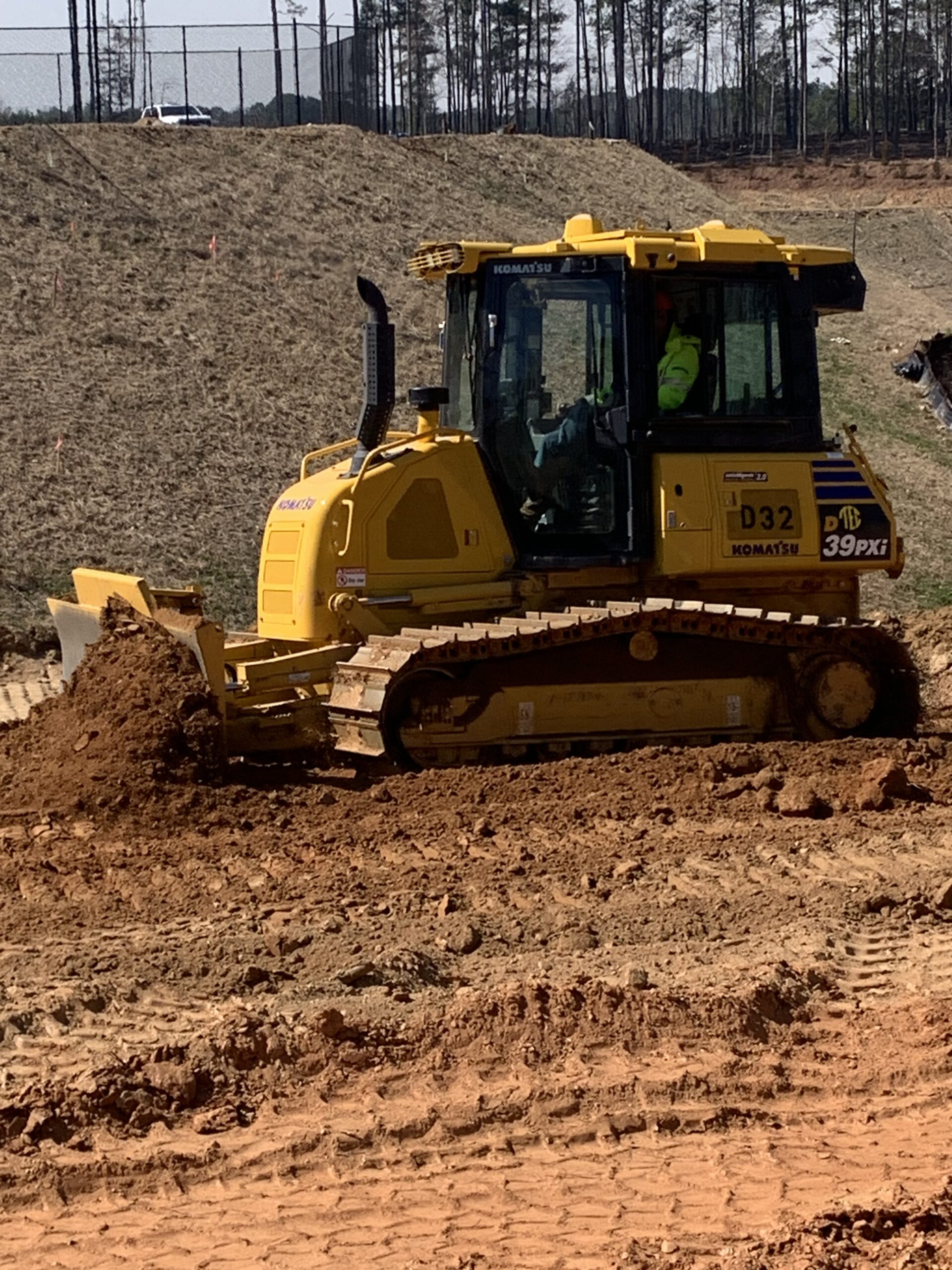

Placing and spreading fill at roadway

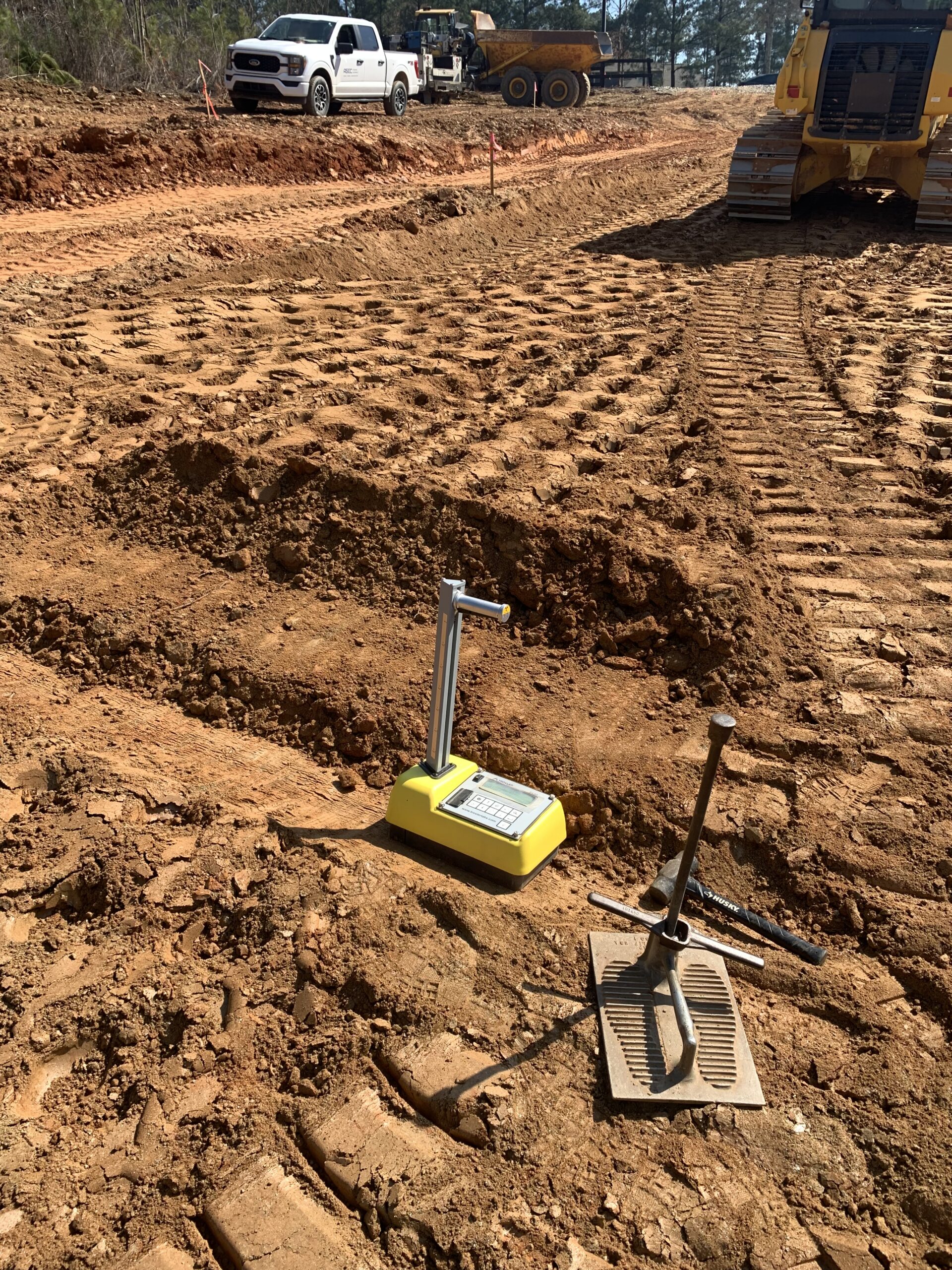

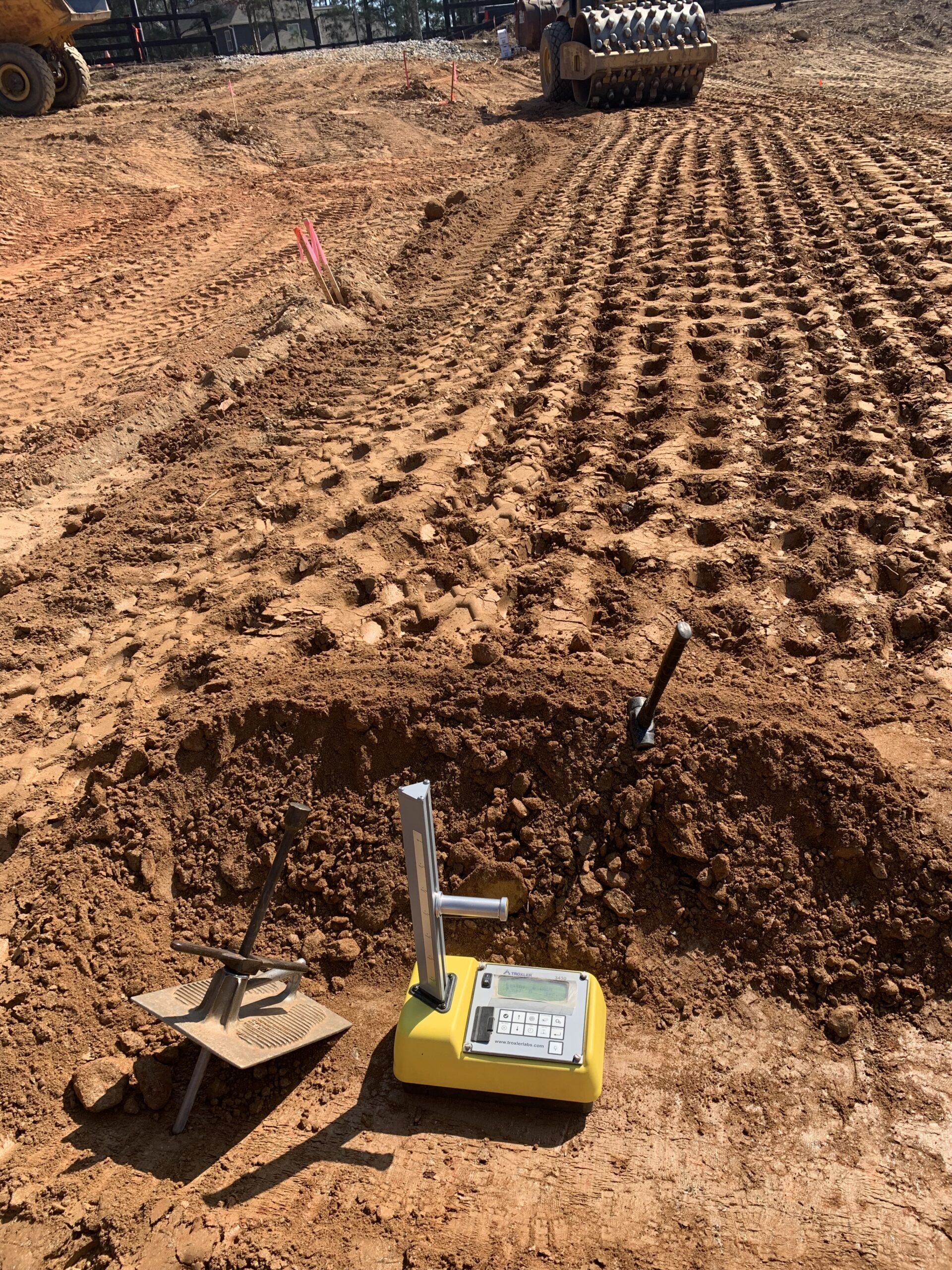

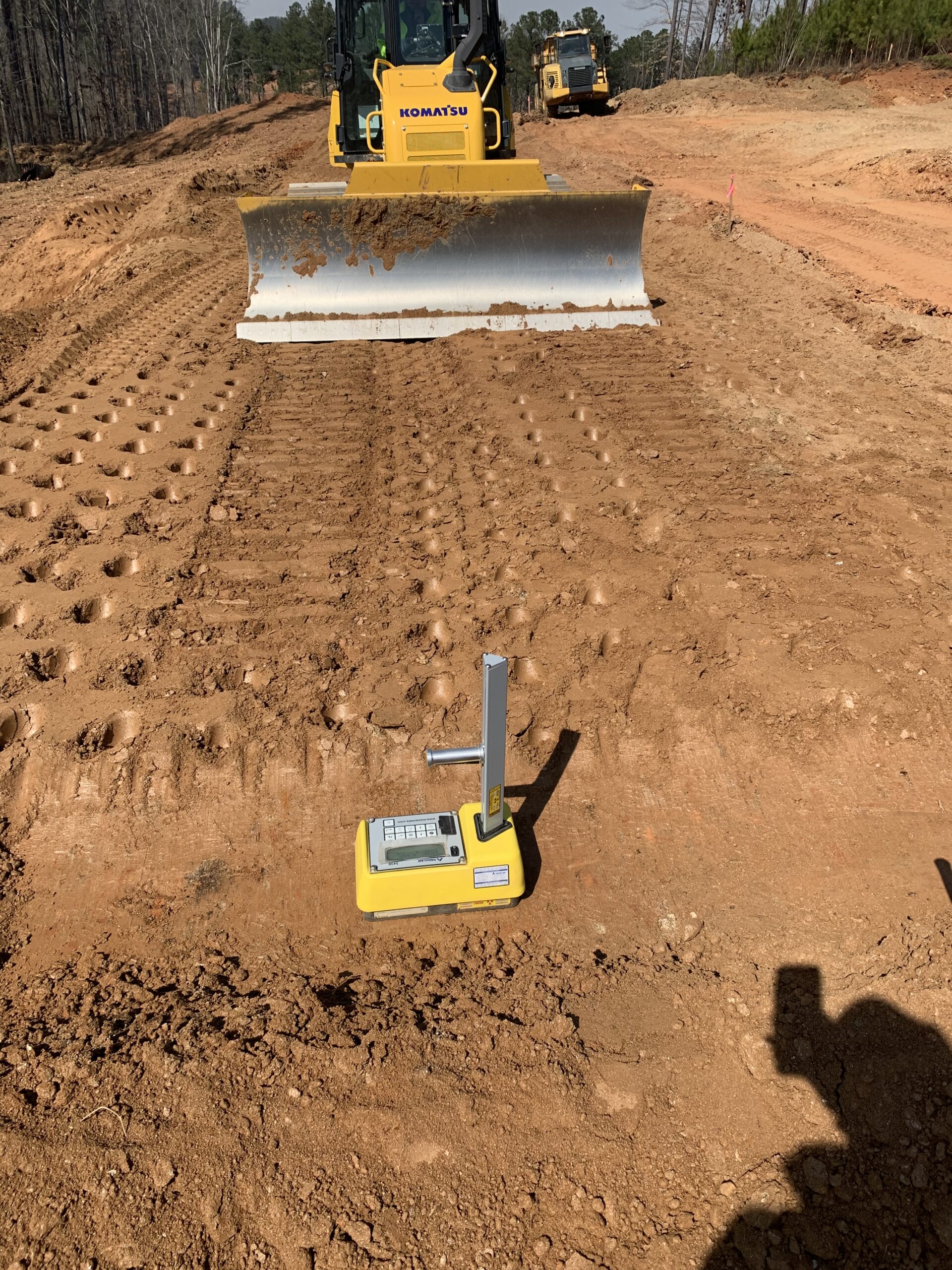

Performing density tests at roadway bet. station 0+75 and 2+25
