Observations/Finding

As requested, the site was visited by our AS Engineering and Consulting (ASEC) representative for the purpose of providing quality control inspection and testing services.  Visual observation techniques were employed to verify compliance with project drawing/specifications, applicable codes, and materials submittals. The following observations were observed on site this day.

On the above date our representative was on site to observe the curb contractor make recommended repairs requested by the county for the raised island pork chop located on Seven Hills Boulevard exiting from Shelby Parkway. The contractor extended the poured end by extending the length westward and placing reinforcing steel (#4 rebar doubled in place) as recommended and poured 3000 psi concrete. The finished product appeared suitable for requirements and approved by Paulding County.

We appreciate the opportunity to be of service to you on this project. If you have any questions regarding this report, please feel free to contact us. We will be more than happy to discuss it with you.

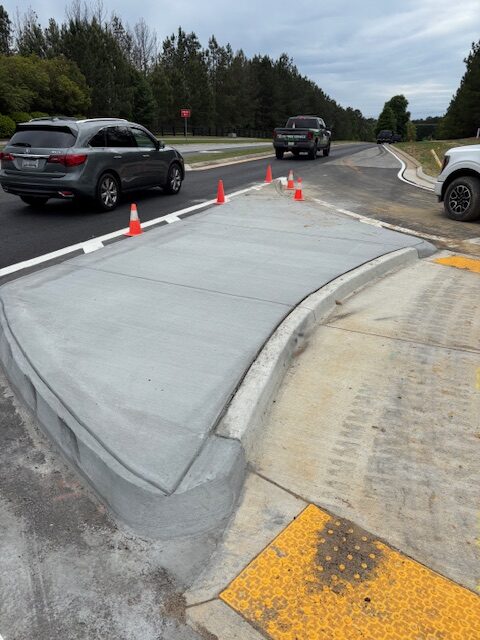

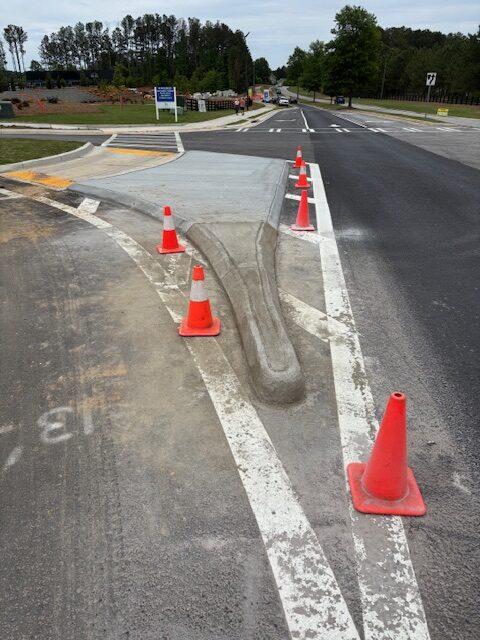

Finished product extending the pork chop end as recommended.

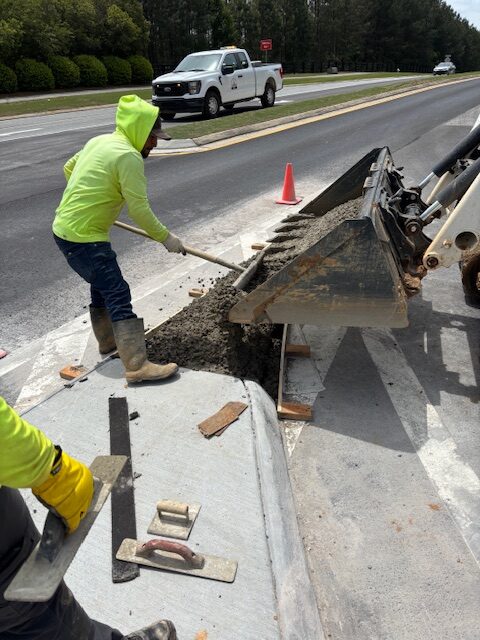

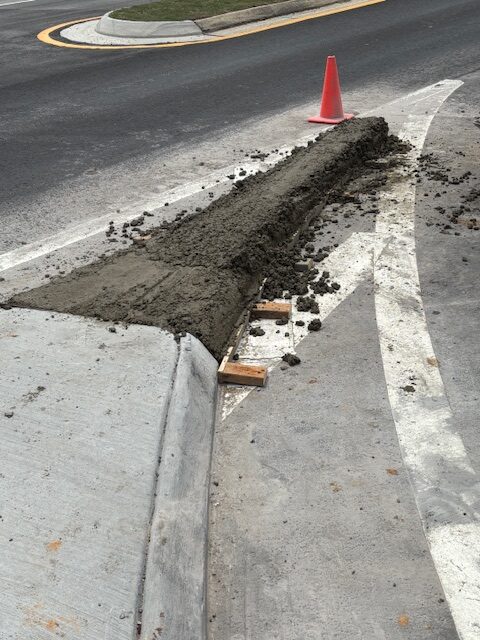

Pouring concrete at repaired area

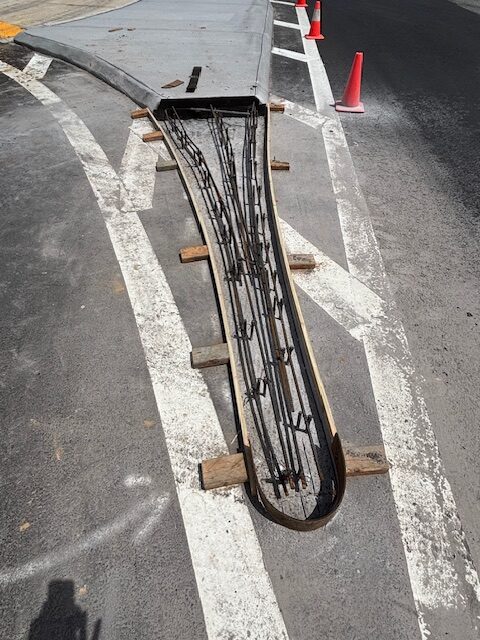

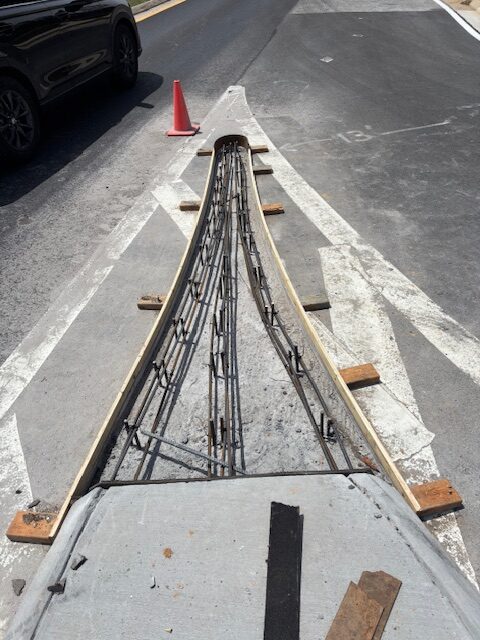

Added reinforcing #4 bars doubled in place of #5 bars.

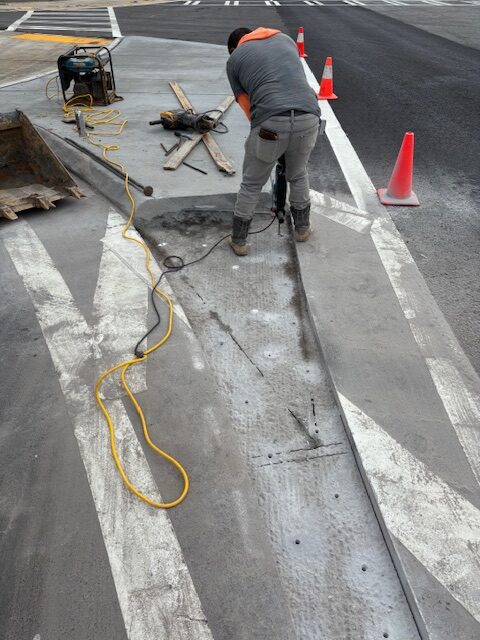

Saw cut existing end to extend longer to prevent left turn
